Factory supply cat5e cable data communication and networking
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Specifications
1.CE/ROHS/ISO9001/SGS
2.UTP/FTP/SFTP
3.CU/CCC/CCA/CCS
4.OEM
Factory supply cat5e cable data communication and networking
1.Application
computer network cabling project
broadband network communication
digital ISDN network and ATM 155Mbps network
ethernet network
audio and data transmission
100base-TX
100VG-AnyLAN
1000BASE-T(Gigabit Ethernet)
ATM
Noisy Enviroments
2.Specification
pairs:4paris
working temperature: -20 °c-75°c
shielding:FTP/UTP/STP
conducter:24awg bare copper or copper clad aluminum
Insulation:HDPE
unrp rope:optional
jacket:CE/UL/RoHs/ISO9001
reference standard:ANSI/TIA/EIA-568B,ISO/IEC11801
package:300 or 305m/roll as per customer request
3.Electrical characteristics
| Frequency, MHz | RL | Attenuation, dB | NEXT, dB | PSNEXT, dB | ELFEXT, dB | PSELFEXT, dB |
| 0.772 | - | 1.8 | 67 | 64 | - | - |
| 1 | 20 | 2 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 4 | 56.3 | 53.3 | 51.7 | 48.7 |
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 |
| 20 | 25 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 | 24.8 |
| 100 | 20.1 | 22 | 35.3 | 32.3 | 23.8 | 20.8 |

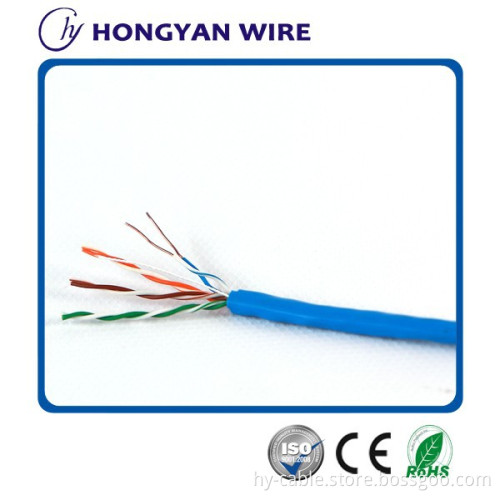

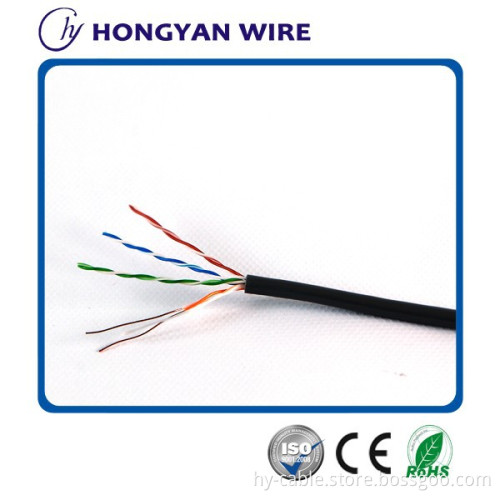

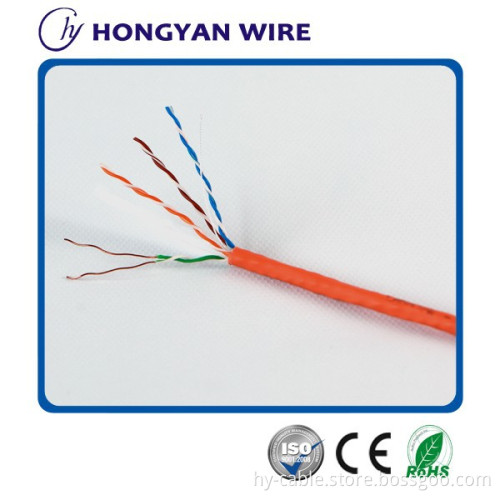

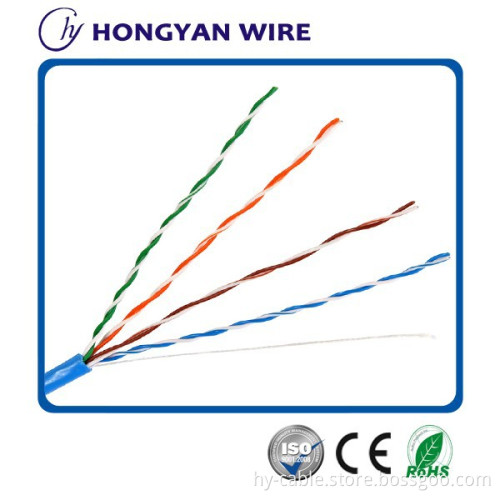

4.Product picture
5.Producing and Testing Corner:
6.Production Process:
7.Certificates
Why Choose Hongyan Wire Industry ?
# Big Factory with more than 15 years experience and 120 well trained workers
# Fast Delivery
# Strict ISO9001 Quality Control Process
# Manufacturer Price and delivery
# Professional International Sales Team with feedback for sure within 24 hours
