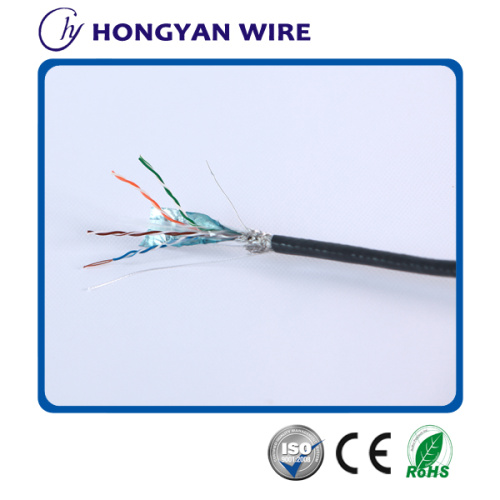

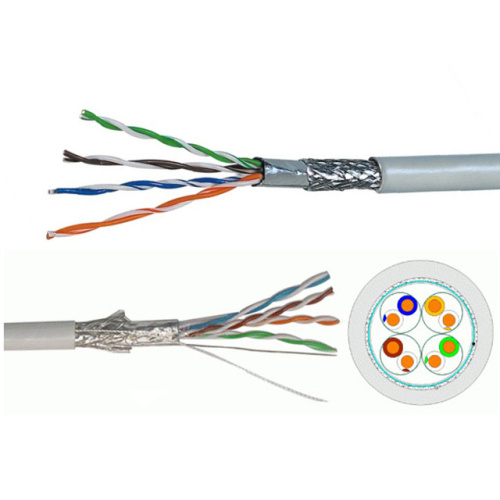

Cat 5E SFTP PVC Cable
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Pack/Packs
- Min. Order:
- 100 Pack/Packs
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 20 kilometer/ day |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | RoHs, ISO9001,CCC |
| Transportation: | Ocean,Land,Air |
Description
Category 5E SFTP Cable supports a frequency range of up to 100MHZ and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
Standards
ISO/IEC11801
ANSI/EIA/TIA-568-B.2
Conductor
Class 1 solid plain copper
Insulation
HDPE(High Density Polyethylene)
Drain Wire
Tinned Copper
Braid
CCAM
Jacket
PVC(Polyvinyl Chloride)
LSZH(Low Smoke Zero Halogen)

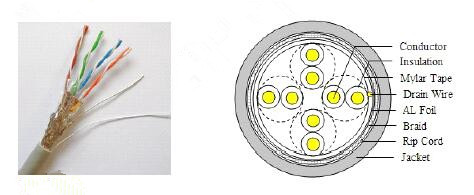

Construction
Specification
Conductor
Thick.
of Insulation
mm
Nominal
O.D.
mm
Nominal
Weight
Kgs/305m
box
24AWG
1.02±0.005
6.0±0.2
13.5
Electrical Characteristics
Max. Conductor Resistance: 9.2Ω/100m
Min. Insulation Elongation: 300%
Max. Resistance Unbalance: 2.4%
Min. Propagation Velocity: 0.62C m/s
Min. Conductor Elongation: 20%
Characteristic Impedance: 100±15Ω
Min. Insulation Resistance: 7000MΩ/km
Frequency
MHz
Attenuation
dB/100m
NEXT
dB
PS-NEXT
dB
RL
dB
ELFEXT
dB
PS-ELFEXT
dB
1
2.0
65.3
62.3
20.0
64.0
61.0
4
4.1
56.3
53.3
23.0
52.0
49.0
8
5.8
51.8
48.8
24.5
45.9
42.9
10
6.5
50.3
47.3
25.0
44.0
41.0
8.2
47.2
44.4
25.0
39.9
36.9
20
9.3
45.8
42.8
25.0
38.0
35.0
25
10.4
44.3
41.3
24.3
35.8
33.0
31.25
11.7
42.9
39.9
23.6
34.1
31.1
62.50
17.0
38.4
35.4
21.5
28.1
25.1
100
22.0
35.3
32.3
20.1
24.0
21.0

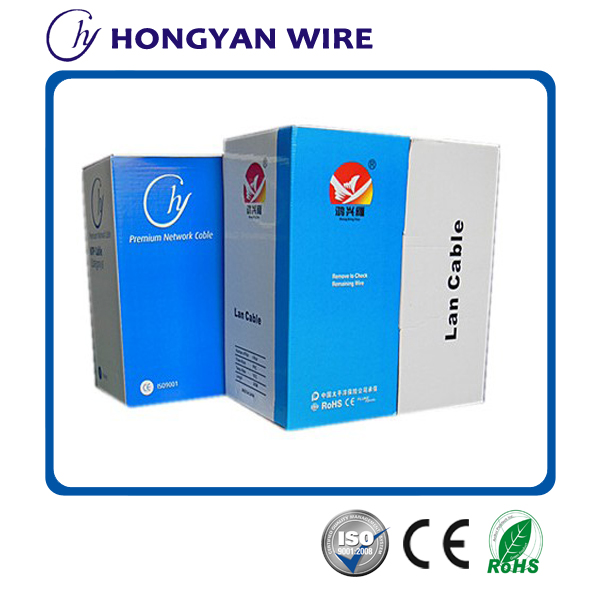

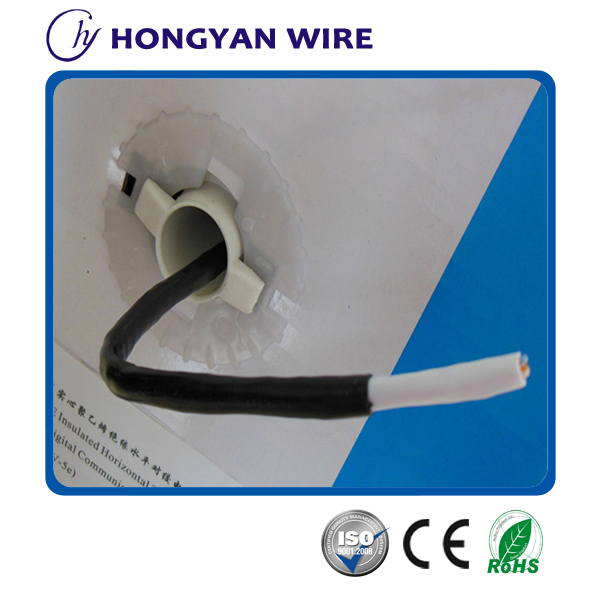

Packing
305M/Box (other packing is optional)
