Belt Guide Injection Tool
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 49 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
3K Mold is able to take your part drawing from our initial molding concept, to a fully functioning high volume production mold. We utilize Mold Flow Analysis and 3D Tool design to design the best mold for your product.
We have a fully equipped, in-house, modern tooling facility which is staffed with highly skilled mold makers. To optimize tooling requirements and costs we utilize and manage subcontractors. This is to ensure their product seamlessly blends with our high standards in mold making. All of this is augmented by a mold maintenance department to ensure your tools are kept in great shape for years and cycles to come.
| Project Information | ||

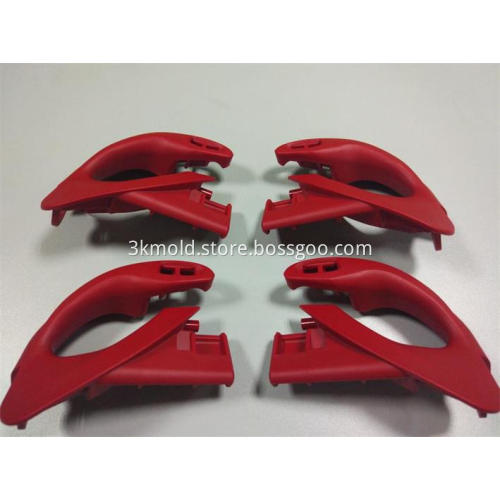

| Product Description | Part Name | Belt Guide Tool |
| Part Material | PA66+GF30 | |
| Part Size(mm) | 127x100x83mm | |

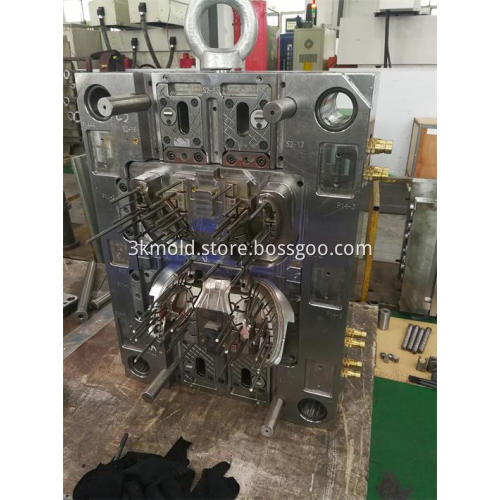

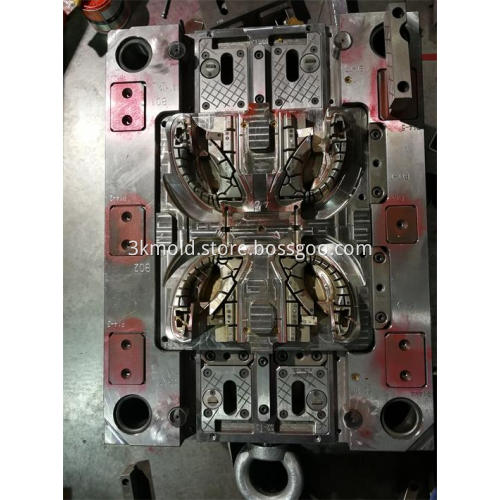

| Mould Description | Cavity Insert Material | 1.2343 HRC48-52 |
| Core Insert Material | 1.2343 HRC48-52 | |
| Slider Insert Material | 1.2343 HRC48-52 | |
| Mould Cavities | 2+2 | |
| Mold parts Standard | Hasco | |
| Mold Size | 483X450X626MM | |
| Mold weight | 880KG | |
| Lead time | 7 weeks | |
| Mould Life Time (Shots) | 1000K | |
| Mould Type | Export to Germany | |
| Runner Description | Cold runner | |
| Injection Gate Type | Sub gate | |
| Ejection System | Ejector pin | |
| Cycle time | 50s | |
| Slide Qty. | 8 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 280T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
