Opel Emblem Plastic Injection Tooling
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 42 Days
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000K shots |
| Supply Ability: | 30 sets per month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO 9001:2008 |
| HS Code: | 8480719090 |
| Transportation: | Ocean |
| Port: | Shenzhen |
At 3K Mold, we are good at Overmold making, Injection overmoding (or bi-material molding) of thermoplastic resins on base elements (in thermoplastic materials).
The process is used to obtain items that respond to:
aesthetic requirements (es. pieces in two different colors, pieces with soft feel to the touch, polymer regenerated pieces "ennobled" with new material cover);
sealing requirements (es. pressure resistance);
performance requirements (es. resistance at critical temperatures, resistance to particular chemical agents).
All presses for bimaterial moulding are equipped with vertical turntable so to be able to optimize production times and to print two types of material in the same article in the specific surfaces of the mold.
| Project Information | ||

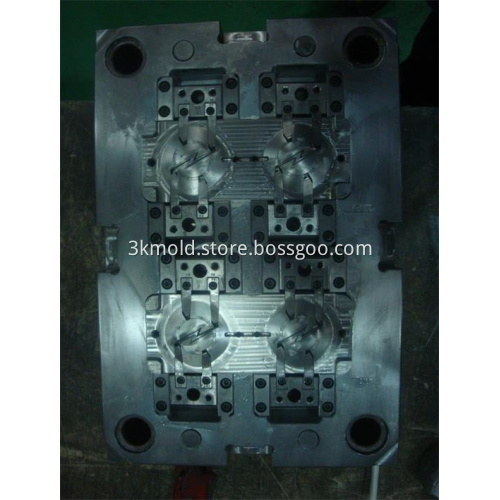

| Product Description | Part Name | Opel Emblem plastic injection tooling |
| Part Material | ABS | |
| Part Size(mm) | 51.98x12mm | |
| Mould Description | Cavity Insert Material | 1.2343 HRC 48-52 |
| Core Insert Material | 1.2343 HRC 48-52 | |
| Slider Insert Material | 1.2343 HRC 48-52 | |
| Mould Cavities | 1X4 | |
| Mold parts Standard | Hasco | |
| Mold Size | 450x350x301mm | |
| Mold weight | 345 kg | |
| Lead time | 6 Weeks | |
| Mould Life Time (Shots) | 1,000,000 | |
| Mould Type | Export to Germany | |
| Runner Description | Yudo Hot runner | |
| Injection Gate Type | 2 nozzle to cold runner sub gate | |
| Ejection System | Ejector pin | |
| Cycle time | 35 S | |
| Slide Qty. | 8 | |
| Lifter Qty. | 0 | |
| Injection moulding machine | 200T |
3K Mold is ISO-9001: 2008 certified. We use formal quality systems to manage the overall quality process and use precision measurement facilities by our well-trained team. All tooling and parts produced at our facility are constantly monitored by our Quality Assurance Department to meet your specifications.
Quality control Center
3K team committed to meet customer quality and delivery request. The main quality control process as following:
Incoming quality control (IQC)
In process quality control (IPQC)
Quality assurance (QA)
Quality management flow:
1. Mold base inspection
2. Steel inspection
3. Mold component inspection
4. Electrodes inspection
5. Mold checking before assembly
6. (FAI, CPK) First Article dimension report
7. Mold checking before delivery
