High-Tg PCB SMD Stencil

Product Description:

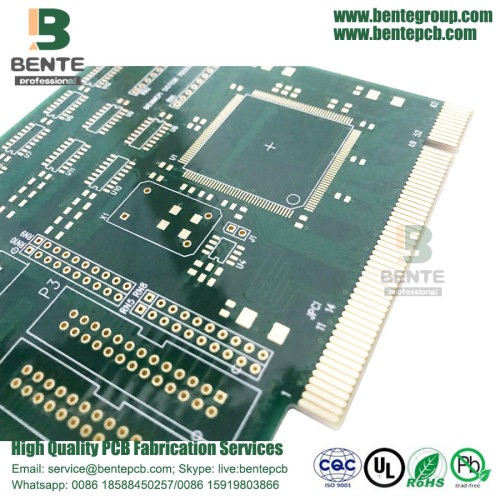

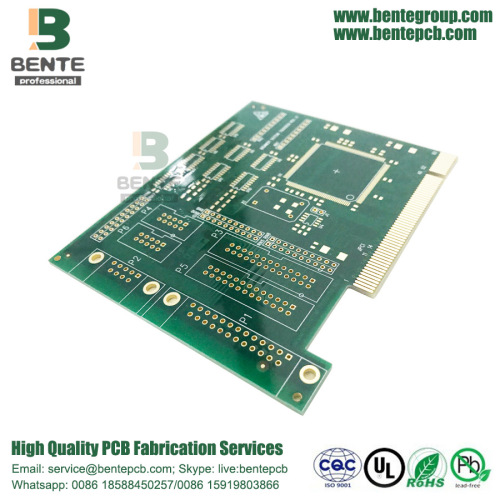

4 Layers High-Tg PCB can be used in Industrial Control Expansion Card, Features is Dumb Green Ink, Thick Gold and Electric Hard Gold, Surface Treatment is ENIG 3u + Gold Finger Electric Gold 15u", Finished Copper is 1oz, Thickness is 1.6mm, Material is FR4, Tg170, High-Tg PCB Tg170.
PCB high reliability. Through a series of inspection, testing and aging tests to ensure long-term PCB (life, usually 20 years) and reliable work.
Good News: Every orders will get free SMT stencil, please check out our website at www.bentepcb.com/onlinepcb.html

High-TG PCB:
The glass transition temperature of a printed circuit board, referred to as "Tg ", indicates the point at which the PCB material will begin to transform. If the operating temperature exceeds the designated Tg value, the board will begin to change from a solid to a liquid state, which is likely to have an adverse effect on its ability to function.
BentePCB are manufactured with materials offering a TG value of 140C, which can withstand an operating temperate of 110C. While this may not be suitable for extreme-temperature processes that are commonplace in applications such as automotive, industrial or high-temperature electronics. In these situations, a PCB made from FR-4 material can often provide the best solution.
What Is FR-4?
FR-4 is a grade designation for flame-retardant fiberglass reinforced epoxy material. Thus, an FR-4 circuit board offers a much greater level of resistance to heat than a standard PCB. FR-4 circuit boards are divided into four classifications that are determined by the number of copper trace layers found in the material:
• Single-sided
• Double-sided
• Four, six or 10 layers
• More than 10 layers
Providing the Right High-Temperature PCB for Your Applications
BentePCB offers a wide selection of high-temperature PCB products manufacturing services either with FR-4 or other high-quality heat- and temperature-resistant Tg materials. We are able to perform high-temperature PCB fabrication for automotive, industry and high-temperature electronics applications. We can manufacture High-Tg PCBs with a Tg value of up to 180°C. Following table lists some of our commonly used materials for High-Tg PCBs production.

About Us:

BentePCB is a professional PCB manufacturing which is focus on double side, multilayer, HDI PCB, rigid PCB and flexible PCB mass production. The company was established on 2011.
We have two factories together, The factory in Shenzhen is specialized in small and middle volume orders and the factory in Jiangxi is for big volume.

Why Us?

UL (E492586), ISO9001,  ISO14001, TS16949, RoHS certified.
Turnover USD 10-50 million per year.
15,000 sqm area, 450 staff .
Mass Production from single to 16 layers.
Special Material:ROGERS, Arlon, Taconic.etc.
Client:Huawei, SAMSUNG, Malata, Midea,Texas Instruments.etc.

Certification(UL:E492586, TS16949, ISO14001, ISO9001,RoHS):

Factory Tour:

Exhibition:

We Took part in the famous exhibitions over the past years,and got highly appreciation from the top experts,as well as cooperated tightly with them.

Delivery:

BentePCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

FAQ:

Q1: What does BentePCB need for a customized PCB order?
A: The customers need to provide Gerber or pcb file.If you do not have the file in the correct format, you can send all the details related to the products.
Q2: What is your quotation policy?
A: For the PCB order in large quantity, BentePCB will send you the quotation based on the MOQ of the products concerned, and the price will be reasonable with good quality.
Q3: How long will you send us quotation ?
A: After all files were sent, 2 to 8 hours as per your file.
Q4:What is your minimum order quantity?
A:Our MOQ is 1 PCS.
Q5: How about the service BentePCB offered to the customers?
A: If you have any questions about our products or company, do not hesitate to send us your inquiry toour customer service representatives, Your satisfaction is our pursuits.

We don`t just sell PCBs .We sell sleep.
