Product Description:

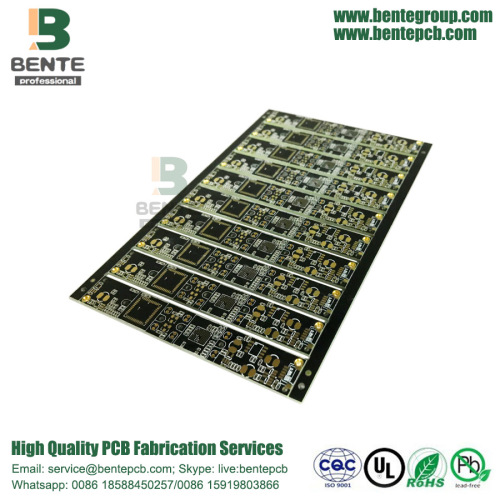

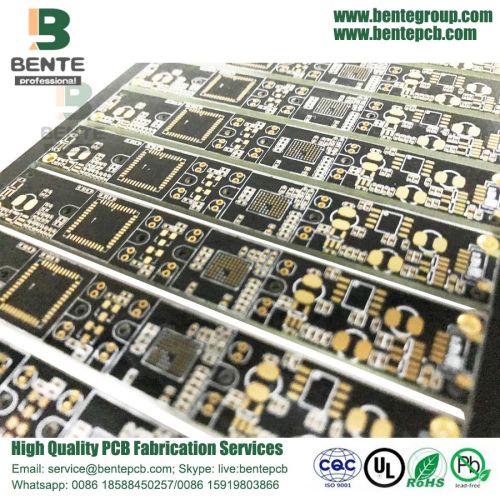

6 Layers HDI PCB Applications is Navigation Equipment, Features is Blind / Buried Via, Surface Treatment is ENIG 5u, Finished Copper is 1oz, Thickness is 1.5mm, Power Strip PCB.
Graphic transfer: Graphic transfer is the production of film on the image transferred to the board.
Good News: Every orders will get free SMT stencil , please check out our website at www.bentepcb.com/onlinepcb.html


HDI PCB:

High Density Interconnects (HDI) are used to meet the market demand for complex designs in smaller form factors across the majority of market segments, (Wireless, Telecom, Military, Medical, Semiconductor, and Instrumentation).

HDI Circuit boards, one of the fastest growing technologies in PCBs, HDI Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter.

They have finer lines and spaces always = <3mil They have a higher circuitry density than traditional circuit boards.

Andwin maintains years of experience with HDI products and was a pioneer of second generation microvias. now offer an entire family of microvia technology solutions for your next generation products.

Stack up of HDI PCB

Stack up of 1  Step HDI PCB

Stack up of 1  Step HDI PCB

Stack up of 2 step HDI PCB

Stack up of 2 step HDI PCB

Stack up of  2 steps HDI with blind via and buried via

 Stack up of  2 steps HDI with blind via and buried via

Anylayer connect of HDI PCB, need to adjust drill

Anylayer connect of HDI PCB, need to adjust drill
