Product Description:

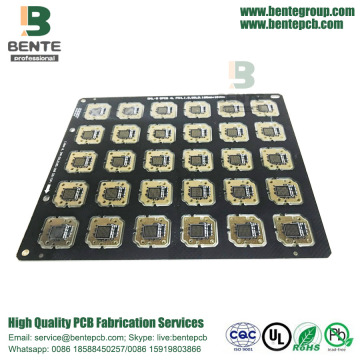

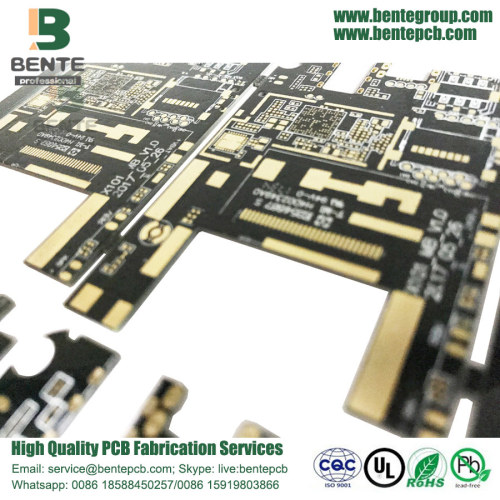

Design PCB Online, Prototype PCB Manufacturer, Circuit Board. Tg170 HDI PCB can be used in Smart Appliances. Features is Line Spacing is Small, Thick Gold and Blind/Buried Via, Surface Treatment is ENIG 3u, Finished Copper is 1oz, Thickness is 1.6mm.
Graphical plating is in the circuit pattern bare copper or hole wall plating to reach the required thickness of the copper layer and the desired thickness of gold or nickel layer of nickel.
Good News: Every orders will get free SMT stencil , please check out our website at www.bentepcb.com/onlinepcb.htm
HDI PCB:
High Density Interconnects (HDI) are used to meet the market demand for complex designs in smaller form factors across the majority of market segments, (Wireless, Telecom, Military, Medical, Semiconductor, and Instrumentation).
HDI Circuit boards, one of the fastest growing technologies in PCBs, HDI Boards contain blind and/or buried vias and often contain microvias of .006 or less in diameter.
They have finer lines and spaces always = <3mil They have a higher circuitry density than traditional circuit boards.
Andwin maintains years of experience with HDI products and was a pioneer of second generation microvias. now offer an entire family of microvia technology solutions for your next generation products.

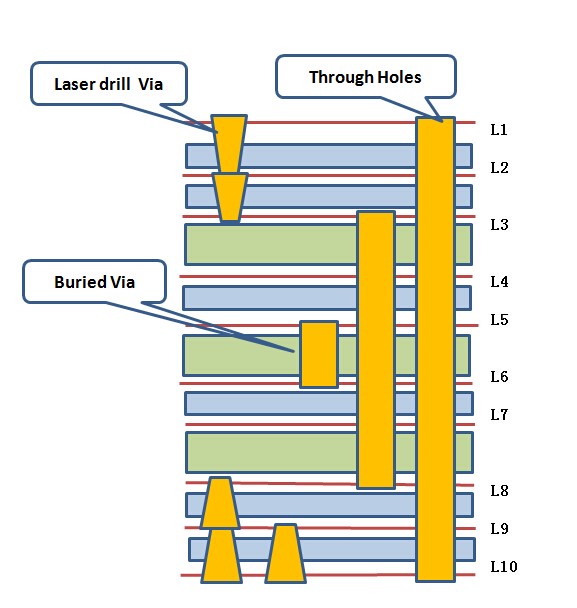

Stack up of HDI PCB
Stack up of 1 Step HDI PCB
Stack up of 2 step HDI PCB
Stack up of 2 steps HDI with blind via and buried via
Anylayer connect of HDI PCB, need to adjust drill
