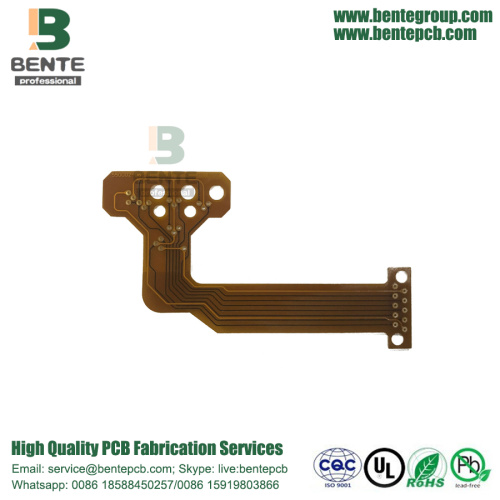

2 Layers Flexible PCB ThinFlex PI ENIG

Product Description:

2 Layers Flexible PCB can be used in Medical Equipment, Hole Copper is 10~15um, Minimum Hole is 0.2mm, Min.Line Width/Space is 4/4mil, Finished Copper is 1oz, Surface Treatment is ENIG, Thickness is 0.2mm±0.03mm, Material is ThinFlex PI.
Flexible circuit board (FPC) features: short and thin
Short - assembly time is short, all lines are configured to complete the need for redundant cable connection work.
Small - Small size than PCB, can effectively reduce the product volume. Increase the convenience of carrying.
Light-weight lighter than PCB (hard board), can reduce the weight of the final product.
Thin - thick than the PCB thin, you can improve the softness, to strengthen the limited space for three times the space assembly.

Flexible PCB:
Flexible printed circuit boards derive their name for their ability to enable the circuitry to be designed to fit the electronic device or product, as opposed to building the device to conform with the circuit board. Flex boards are characterized by a distinctly patterned printed circuitry and component arrangement highlighted by a malleable base material.
Exploring the Many Advantages of Flex Circuit Boards
Flexible printed circuit boards offer a number of potential benefits including:
Saving Space: Flex PCB design requires only about 10 percent of the space and weight of a wired circuit board assembly, offering greater installation and packaging freedom. The inherent flexibility also permits tighter bend capabilities.
Maximum Reliability: A flexible printed circuit board requires fewer interconnects, which in turn require fewer contact crimps, connectors and solder joints. Simply put, a flexible PCB board does not contain as many potential sources for failure, which enhances their reliability.
Enhanced Capabilities: The flexible PCB is compatible with virtually any type of connector or component and works well with options such as ZIP connectors. They also perform extremely well in extreme temperatures and offer superior resistance to radiation and chemicals.
Cost Savings: Cost-saving advantages of flexible printed circuits include reduced material and packaging requirements, lower parts replacement costs and a reduction in assembly errors that could otherwise result in the need for repairs.
All of these benefits make flex circuit boards ideally suited for a wide range of applications in industries such as Military, Transportation, Medical, Consumer Electronics, Automotive, Aerospace, Communications and Industrial.
BentePCB: A Leading Flex PCB Manufacturer for More Than a Decade
At BentePCB, we specialize in the fabrication and assembly of flexible printed circuit products for use in the manufacturing of medical devices and various types of telecommunication and industrial equipment. Our custom PCB manufacturing capabilities allow us to develop and produce a top-performing flex PCB that meets your unique requirements. We can also work with you to produce a custom flex PCB prototype that will significantly improve your prospects of a successful project outcome.

About Us:

BentePCB is a professional PCB manufacturing which is focus on double side, multilayer, HDI PCB, rigid PCB and flexible PCB mass production. The company was established on 2011.
We have two factories together, The factory in Shenzhen is specialized in small and middle volume orders and the factory in Jiangxi is for big volume.

Why Us?

UL (E492586), ISO9001,  ISO14001, TS16949, RoHS certified.
Turnover USD 10-50 million per year.
15,000 sqm area, 450 staff .
Mass Production from single to 16 layers.
Special Material:ROGERS, Arlon, Taconic.etc.
Client:Huawei, SAMSUNG, Malata, Midea,Texas Instruments.etc.

Certification(UL:E492586, TS16949, ISO14001, ISO9001,RoHS):

Factory Tour:

Exhibition:

We Took part in the famous exhibitions over the past years,and got highly appreciation from the top experts,as well as cooperated tightly with them.

Delivery:

BentePCB offers flexible shipping methods for our customers, you may choose from one of the methods below.

We don`t just sell PCBs .We sell sleep.
