Product Description

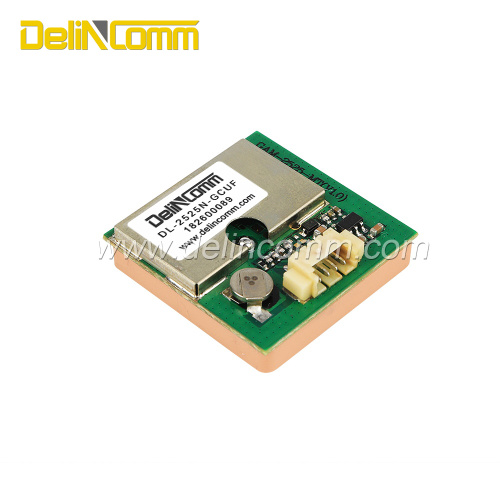

The GNSS Intelligent Antenna Module with 4-pin series is a family of stand alone GPS receivers featuring the high performance

u-blox 7 positioning engine.

Features

n Build on high performance, low-power u-blox UBX-G7020-KT chip set

n Ultra high sensitivity: -165dBm

n Extremely fast TTFF at low signal level

n Built in high gain LNA

n Low power consumption:Max25mA/3.3V

n NMEA-0183 compliant protocol or custom prot ocol

n Operating voltage: 3.0V--5.0V

Operating temperature range:-40to85℃

n Patch Antenna Size: 25x25x4mm

n Small form factor: 25.5x25.5x8.7mm

n Communication type: UART/TTL

n RoHS compliant (Lead-free)

  Key Features
   Parameter                                Specification
Receiver Type Code 56 search channels ,22 synchronous tracking channels
GPS&QZSS L1 1575.42MHz C/A ,GLONASS L1OF 1602MHz,
                                                    SBAS: WAAS, EGNOS, MSAS, GAGAN
Horizontal Position Accuracy (Autonomous)    <2.5m CEP @-130 dBm

Max Update Rate Up to 10Hz,1Hz by fault
Acceleration Accuracy Without aid: 0.1m/s²
Dynamic Performance Maximum altitude: 18,000m
Maximum velocity: 515m/s
Acceleration: 4G
UART Port UART Port: TXD and RXD

S Supports baud rate from 4800bps to 115200bps, 9600bps by default

UART port for NMEA and UBX output, binary or ublox proper Agreement input
