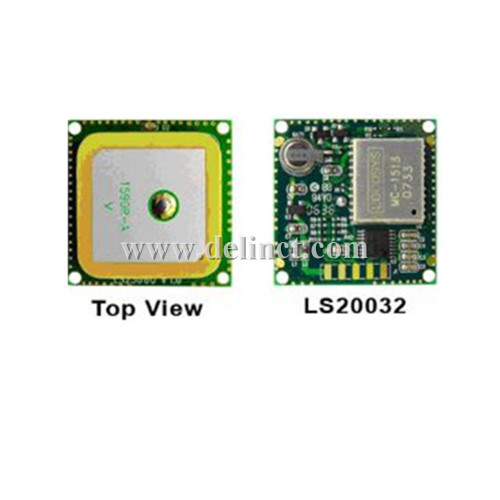

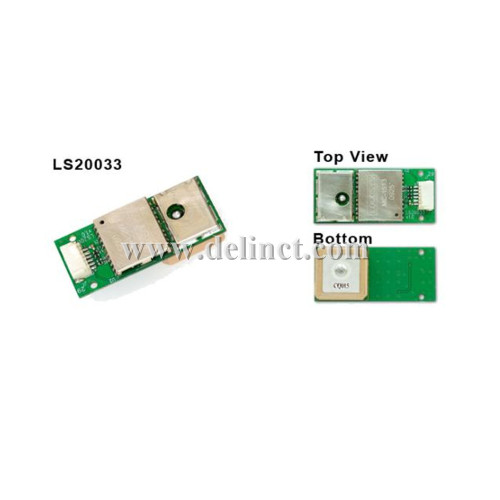

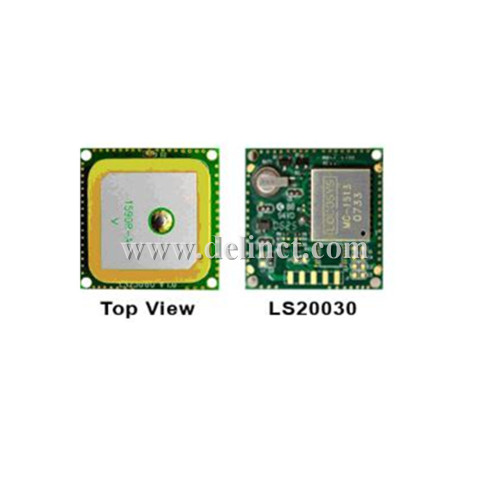

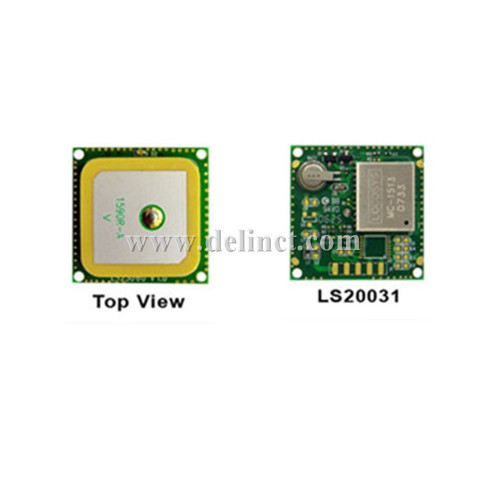

GPS Smart Antenna Module/USB, 9600BPS, 30X30mm

GPS Smart Antenna Module/USB, 9600BPS, 30X30mm

Specification

LS20030~3 series products are complete GPS smart antenna receivers, including an embedded antenna and GPS receiver circuits, designed for a broad spectrum of OEM system applications. The product is based on the proven technology found in 66 channel GPS SMD type receivers MC-1513 that use MediaTek chip solution. The GPS smart antenna will acquire up to 66 satellites at a time while providing fast time-to-first-fix, one-second navigation update and low power consumption. It can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. Its far-reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications.

Features

• MediaTek high sensitivity solution
• Support 66-channel GPS
• Fast TTFF at low signal level
• Support AGPS
• Up to 10 Hz update rate
• Capable of SBAS (WAAS, EGNOS, MSAS)
• Build-in micro battery to reserve system data for rapid satellite acquisition
• LED indicator for GPS fix or not fix

Application

• Personal positioning and navigation
• Automotive navigation
• Marine navigation
