Ls26031 GPS Module Incorporated Into Mini Pcie Card

Ls26031 GPS Module Incorporated Into Mini Pcie Card

Specification

LS26031 gps smart antenna module supports hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction that is no need of both network assistance and host CPU's intervention. This is valid for up to 3 days and updates automatically from time to time when gps smart antenna module is powered on and satellites are available. The other is server-generated ephemeris prediction that gets from an internet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.

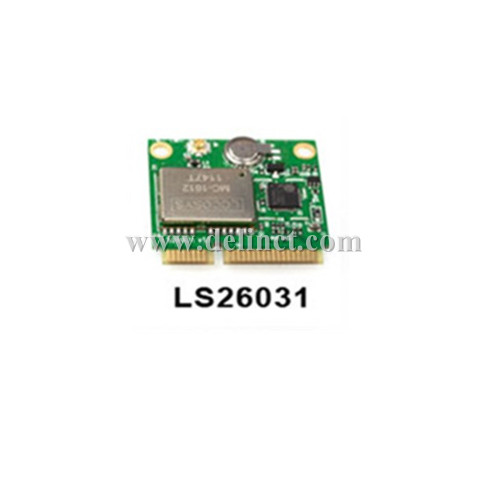

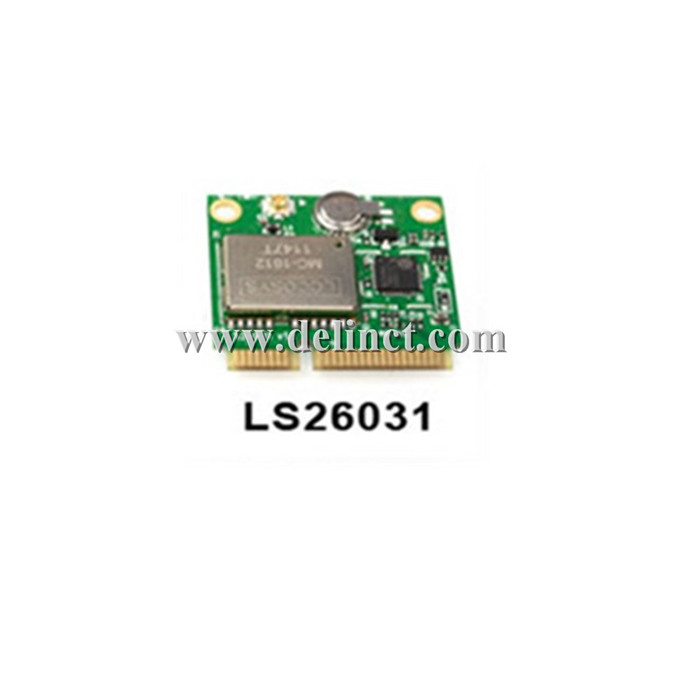

LS26031 gps smart antenna module is a GNSS module incorporated into the PCIe Half-Mini card . This GNSS module is powered by MediaTek, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. Besides, the USB interface makes this module easy to integrate into the laptop.

Features

1.USB interface

2.MediaTek high sensitivity solution

3.Support GPS, GLONASS, GALILEO and QZSS

4.Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)

5.Support 99-channel GNSS

6.Low power consumption

7.Fast TTFF at low signal level

8.Built-in 12 multi-tone active interference canceller

9.Free hybrid ephemeris prediction to achieve faster cold start

10.Built-in data logger

11.Up to 10 Hz update rate

12.±11ns high accuracy time pulse (1PPS)

13.Indoor and outdoor multi-path detection and compensation

14.Built-in LNA and SAW filter

15.Built-in micro battery to reserve system data for rapid satellite acquisition

Application

1.Laptop with GPS function

2.IPC with GPS function
