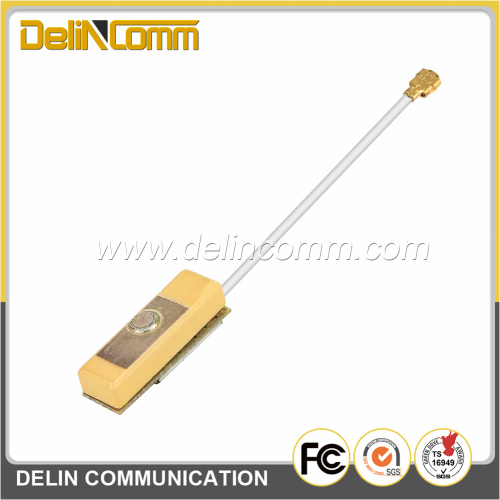

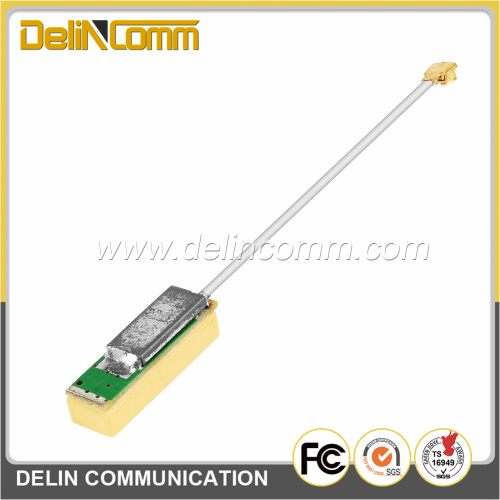

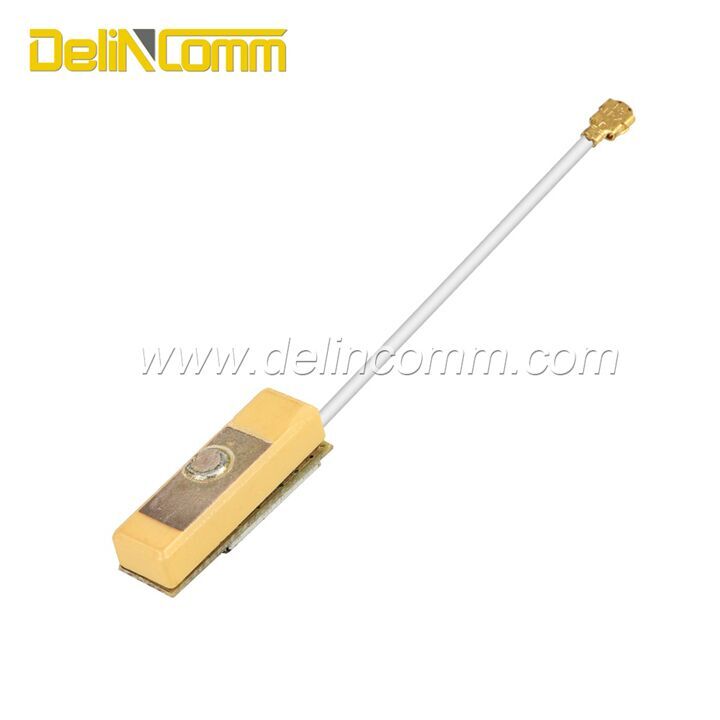

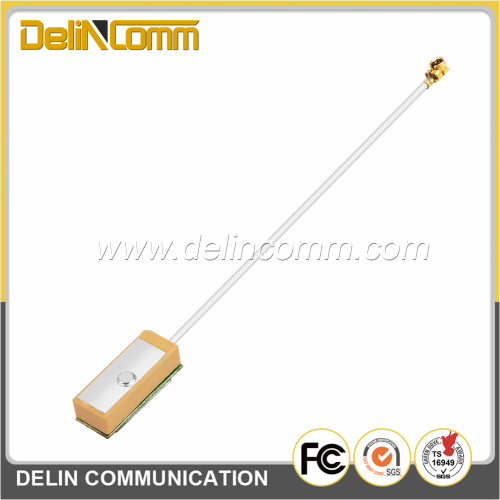

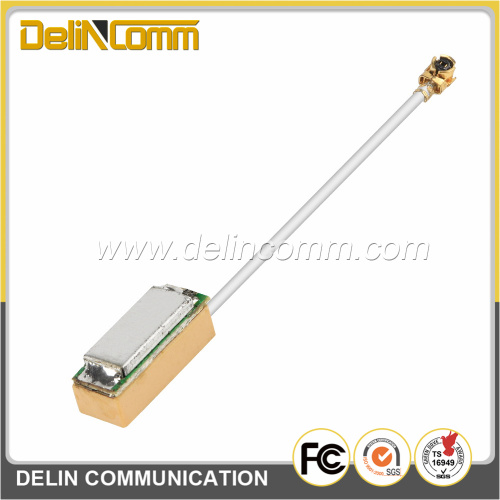

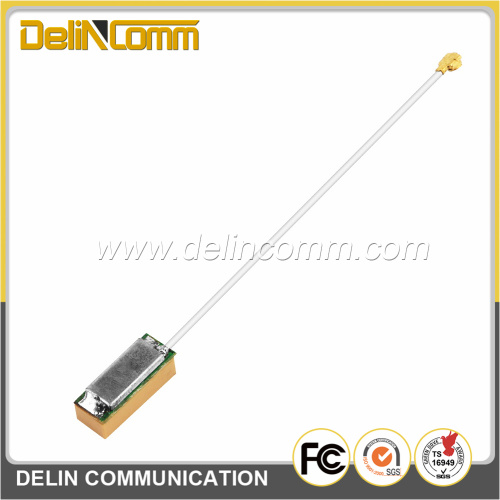

GPS Built-in Ceramic Antenna

N6166I160A is an active antenna built from a ceramic antenna, a low noise amplifier and a feed - back cable.It has the following characteristics:

1 .Product Introduction

1.low voltage :2.7~3.3V
2.Low noise coefficient: <=1.5
3.gain:16±1dB

2 . antenna structure

size                               6×16×6.7mm
connector                      IPEX head
connecting line               1.13 line
weight                           10g
working temperature       -40ºC~85ºC
Operation humidity          10%~95%
storage temperature       -45ºC~85ºC
Storage humidity             10%~95%
length of lead                 50mm

3 .Technical characteristics
3.1Antenna body

Center Frequency                     1575.42MHZ
Baud Width                             10MHZ
Gain(Maximum direction)           3dB
Gain (10 degrees elevation)      -5dB
polarization                             Right-handed polarization
Impedance                             50Ω
(The above target test is based on 6X16mm ground)

3.2 Low noise amplifier

Center frequency 1575.42MHZ
Gain 16dB±1dB
Noise factor <1.5dB
Standing-wave ratio <1.5dB
Working voltage 2.7-3.3V
Impedance 50Ω

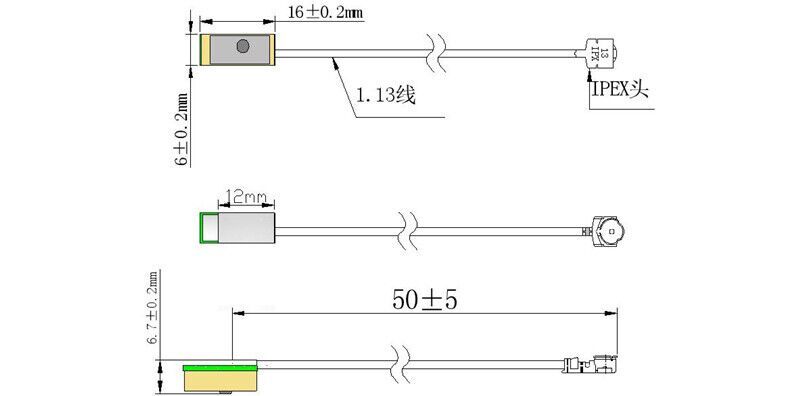

4 .Structure dimension drawing (unit: mm)
