GNSS Module with Patch Antenna

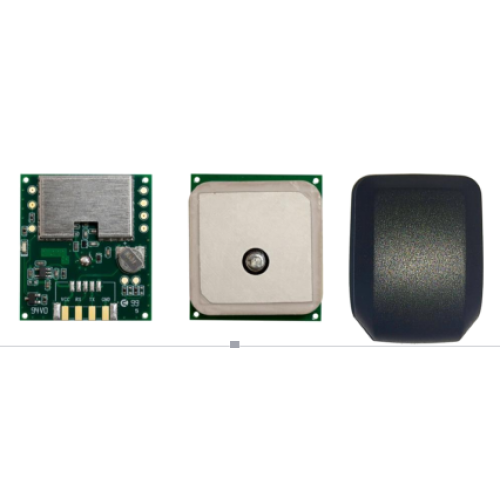

    The DL-HD-2528 is a complete standalone GNSS smart antenna module, including an embedded patch antenna and GNSS receiver circuits. The module can simultaneously acquire and track multiple satellite constellations that include GPS, BEIDOU, GALILEO, QZSS and SBAS. Besides, it can provide you with

superior sensitivity and performance even in urban canyon and dense foliage environment.

It is easy to install without both RF connector and coaxial cable that are needed in a separated GNSS active antenna. In other words, reduce the cost and size. Also, speed up the time to market by eliminating R&D efforts on RF matching and stability between separated GNSS antenna and module. Its far-reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications.

0         Features

           HED high sensitivity solution

      Support GPS, BEIDOU, GALILEO and QZSS

      Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN, SDCM)

      Support 72-channel GNSS

      Fast TTFF at low signal level

      Build-in gold capacitor to reserve system data for rapid satellite acquisition

      Up to 20 Hz update rate

      Indoor and outdoor multi-path detection and compensation

      LED indicator for position fix or not fix

GNSS Performance

Chip                                           HD8020
Frequency                                  GPS, GALILEO, QZSS: L1 1575.42MHz, C/A code

                                                 BEIDOU: B1 1561.098MHz, C/A code

Channels                                    Support 72 channels

Update rate                                1Hz default, up to 20Hz

Acquisition Time                          Hot start (Open Sky)                  < 1s (typical)

                                                 Cold Start (Open Sky)                 28s (typical)

Position Accuracy                        Autonomous                              2.5m CEP

                                                 SBAS                                        2.0m CEP

Max. Altitude                              < 18,000 m

Max. Velocity                             < 515 m/s

 Protocol Support                       NMEA 0183 ver 4.0                  9600 bps, 8 data bits, no parity, 1 stop bits (default)

                                                                                               1Hz: GGA, GLL,GSA, GSV, RMC
