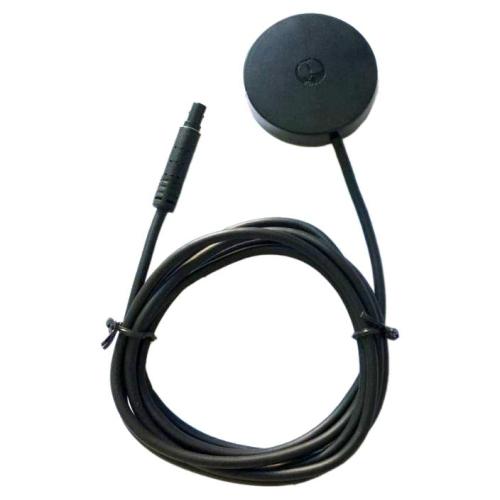

Gnss Receivers Module Antenna with 5-Pin Bm

     The DL-45R-1.5MBM5V-GGCU module seriesis a family of stand alone GNSS receivers featuring the high performance u-blox M8 positioning engine.
These flexible and cost effective receivers offer numerous connectivity options in a miniature ø45mm package.Their compact architecture and power and
memory options make DL-45R-1.5MBM5V-GGCU modules ideal for battery operated mobile devices with very strict cost and space constraints.

    View Features
 Build on high performance, low-power  u-blox UBX-M8030-KT chip set
 Ultra high sensitivity: -165dBm
 Extremely fast TTFF at low signal level
 Built in high gain LNA
 Low power consumption:Max40mA/3.3V
 NMEA-0183 compliant protocol or custom protocol
 Operating voltage: 3.0V-5.0V
 Operating temperature range:-40to85℃
 Patch Antenna Size: 25x25x4mm
 Small form factor: ø45mm, height:11.5mm
 Communication type: UART/TTL
 Wire interface type: 5-pin BM, L=150cm
 RoHS compliant (Lead-free)

  

Key Features
Parameter                                     Specification
Power Consumption                     Acquisition: 40mA/VCC=VBAT=5.0V
                                                     Tracking: 35mA /VCC=VBAT=5.0V

                                                     Backup: 20uA/VBAT=3.3V
Receiver Type                              Code 72 search channels ,22 synchronous tracking channels
                                                     GPS&QZSS L1 1575.42MHz C/A , Beidou B1 1561.098MHz,
                                                     GALILEO E1B/C 1 ,GLONASS L1OF 1602MHz,
                                                     SBAS: WAAS, EGNOS, MSAS, GAGAN

Sensitivity                                     Tracking: -165dBm
                                                     Re-acquisition: -154dBm
                                                     Acquisition: -146dBm

TTFF (Autonomous)                           Cold start: 38s typ @-130dBm
                                                       Warm start: 35s typ @-130dBm
                                                       Hot start: 1s typ @-130dBm

Horizontal Position                       <2.5m CEP @-130 dBm
Accuracy (Autonomous)
Max Update Rate                         Up to 10Hz,1Hz by fault
Accuracy of 1PPS Signal             not enabled
Acceleration Accuracy                 Without aid: 0.1m/s²
Dynamic Performance                 Maximum altitude: 18,000m
                                                     Maximum velocity: 515m/s
                                                     Acceleration: 4G
UART Port                                   UART Port: TXD and RXD
                                                    Supports baud rate from 4800bps to 115200bps, 9600bps by default
                                                    UART port for NMEA and UBX output, binary or ublox proper
                                                     Agreement input
