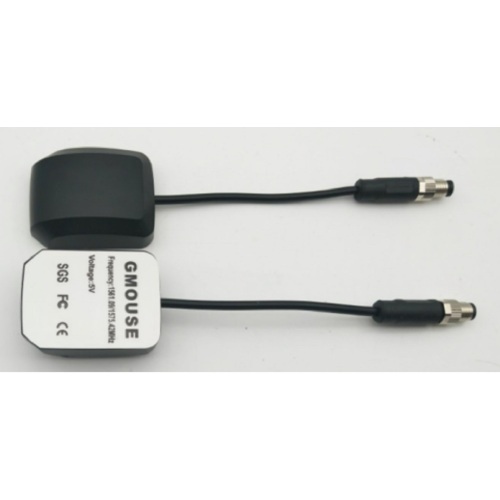

140mm High gain Vehicle GMOUSE External Antenna

GMOUSE external antenna, is a support BD2 (B1) /GPS (L1) dual-mode active receiving antenna. The built-in high performance dual mode (BD2/GPS) receiving HX6512 integrated module, ceramic antenna, low noise amplifier. The plastic shell, the waterproof design. The product volume small, convenient installation and use.

Operating condition

Temperature: -40°C~+80°C

Humidity: 95%~100%

Storage condition

Temperature: -45°C~+85°C

Humidity: 95%~100%

Parameters of the antenna

Service frequency: GPS L1;BD2 B1

VCC: 5V

UART: 2LVTTL

Working current: 85±3mA

Cold boot time: ≤38s

Warm boot time: ≤1s

Recapture time: ≤1s

Tracking sensitivity: -160dBm

Acquisition sensitivity: -146dBm

Horizontal error: ≤5m

Baud rate: 9600BPS

1PPS: Have

Data updating rate: 1s

Working temperature: -40°C~ +85°C

Output level: RS485
