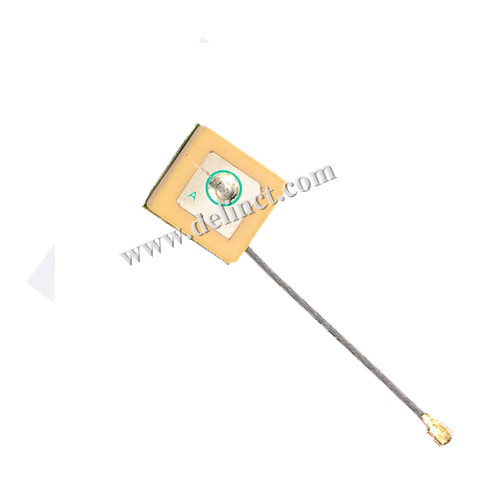

GPS&GLONASS Combined Internal Antenna with SMA

GPS&GLONASS Internal Antenna consist of ceramic antenna, low noise amplifier and feed antenna. It also is a combined antenna can receiver different frequence.

Antenna structures

Size: 15*15*6.7mm

Connector: SMA

Line: 1.13

Weight: <40g

Work temperature: -40°C~-80°C

Work humidity: 10%~90%

Storage temperature: -45°C~-85°C

Storage humidity:10%~95%

LNA: 100mm

Product Specifications

Antenna:

   Range of receiving frequency: 1575&1600MHz±5MHz

   Centre frequency: 1575&1600Mhz

   Bandwidth: 5MHz

   Gain: (maximal orientation) 0dB;  (10° elevation) -5dB

LNA:

   Centre frequency: 1575&1600MHz

   Gain: 21dB±2dB

   Noise figure: <2.0

   V.S.W.R.: <2.0

   Work voltage: 2.7~3.3V

   Work current: 8±2mA

   Impedance: 50Ω

   Polarizatiom: Right-hand
