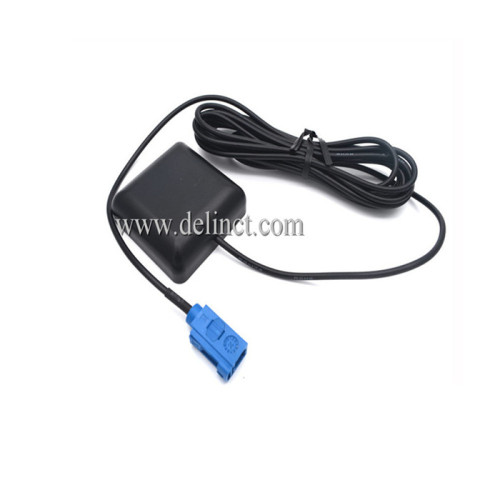

GPS&BeiDou Combination Dual Band Antenna

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Transportation:: Ocean, Air

Port:: Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangzhou
Productivity:	100000/Day
Supply Ability:	100000/Day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	Ce, RoHS, FCC, ISO2000
HS Code:	8529109090
Transportation:	Ocean,Air
Port:	Guangzhou

Product Description

The effect of GPS&BD receiving antenna is changing the electromagnetic wave energy conversion radio signal from the satellite receiver into the electronic device can supply the uptake of.GPS&BD application receiving antenna by right circularly polarized design, mainly used to receive GPS satellite L1 band and B1 band. The Beidou satellite antenna with high gain, low in Bobbi, accept ability the electromagnetic wave energy conversion radio signal to the satellite receiver electronics can supply.GPS&BD antenna application is composed of ceramic uptake and active antenna amplifier. Using plastic enclosure, with anti water moisture The utility model is characterized in that the product is compact in size, and the bottom of the antenna is provided with a magnet, and the installation and the use are convenient

Specifications

No Item Specifications Post Environmental Tolerance

1 Range of Receiving Frequency(MHz) 1575.42&1561.098±3 ±2.5

2 Center Frequency(MHz) 1575.42&1561.098±3 ±3.0

(with 30mmSpuareGND plane)

3 Band Width(MHz) ≥10

(Return Loss≤-10dB)

4 V.S.W.R(in Center Frequency) ≤1.5

5 Gain (Zenith)(dBi typ) 3

(with 70mmSquare GND plane) ±0.5

6 Axial Ratio 3.0dB ±0.2

(with 70mm Square GND plan)
