Product Description

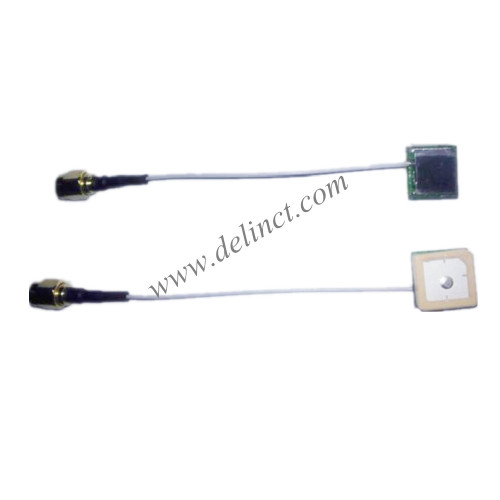

GPS&GLONASS Internal Antenna GPS&GLONASS Caremic Antenna with SMA

The GPS&GLONASS internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:

Low voltage: 2.7~3.3V
Low noise factor: less than 2
Gain: 21 + 2dB

Specifications

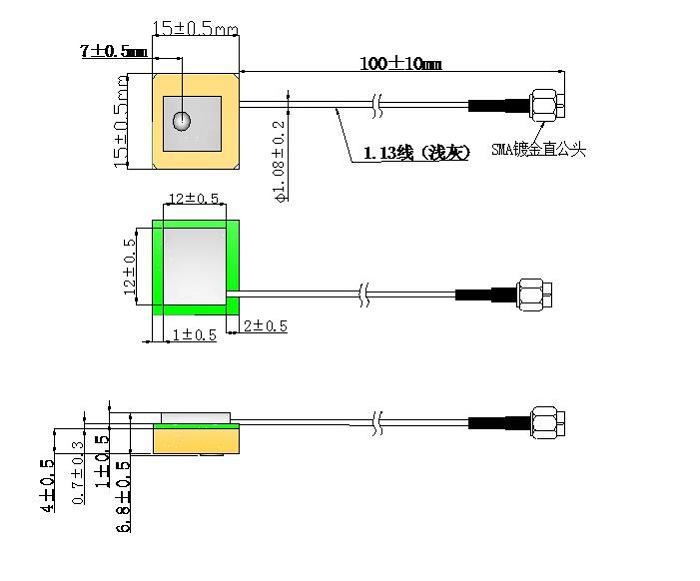

1. Antenna Structure

Size: 15×15×6.7mm

Connector: SMA Gold Plated Straight Male Head

Cable: 1.13

Weight: ＜40g

Work Temperature: -40℃~80℃

Work Humidity: 10%~95%

Storage Temperature: -45℃~85℃

Storage Humidity: 10%~95%

Length of Lead: 100mm

2. Technical Characteristics

2.1 Antenna body

Receive Frequency: 1575&1600MHz±5MHz

Center Frequency: 1575&1600MHz

Tape Width: 5MHZ

Gain (maximum direction): 0dB

Gain (10 degrees elevation): -5dB

Polarization: Right-handed polarization

Impedance: 50Ω

(Above target test is based on 15x15mm ground)

2.2 Low noise amplifier

Center Frequency: 1575&1600MHz

Gain: 21dB±2dB

Noise Factor: ＜2.0

V.S.W.R: ＜2.0

Working Voltage: 2.7~3.3v

Working Current: 8±2mA

Impedance: 50Ω
