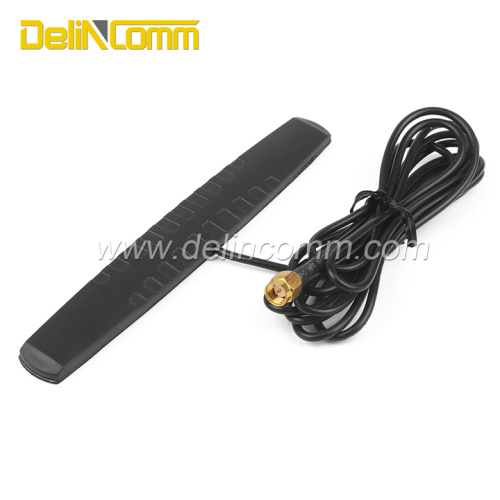

Black 4G Flat intermediate outle Antenna with SMA
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Transportation:
- Ocean, Air
- Port:
- Guangzhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | GUANGZHOU |
---|---|
Productivity: | 100000/Day |
Supply Ability: | 100000/Day |
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB |
Certificate: | Ce, RoHS, FCC, ISO2000 |
Transportation: | Ocean,Air |
Port: | Guangzhou |
Black 4G Flat intermediate outle Antenna with SMA
4G antenna characteristics
Item Specifications
Range of Receiving Frequency(MHz) 824~960 1710~2710 2300~2683
V.S.W.R(in Center Frequency) ≤2.0
Gain (Zenith)(dBi typ) >2.0
Radiation Omnidirectional
Power Capacity(W) 50
Polarization Perpendicular
Connector Type SMA gold plated bow head
Size(mm) 150*21*6
Color Black
Weight(g) ≥44.5
SMA header characteristics
1 Materials and coatings
Part name Material Cladding material Remarks
Inner conductor Brass wire Gold-plating Hard gold
Dielectric Teflon
Hull Brass(HPb59-1) Gold-plating Hard gold
2 electrical performance
Test item Qualification Remarks
Characteristic impedance 50Ω
Mperature range -65~+165℃
Frequency range 0~12GHZ
Dielectric Strength 1000V(rms)
Contact resistance Inner conductor≤3mΩouter conductor≤2mΩ
Dieletric ≥5000MΩ
V.S.W.R ≤1.25(soft cable)
Salt spray test(hour) 24
3 mechanical properties
Mechanical performance Qualification Remaks
Mechanical endurance ≥500 times
