High Quality GSM/3G/4G Rubber Wideband Antenna

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Transportation:: Ocean, Air

Port:: Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangzhou
Productivity:	100000/Day
Supply Ability:	100000/Day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	Ce, RoHS, FCC, ISO2000
HS Code:	8529109090
Transportation:	Ocean,Air
Port:	Guangzhou

Product Description

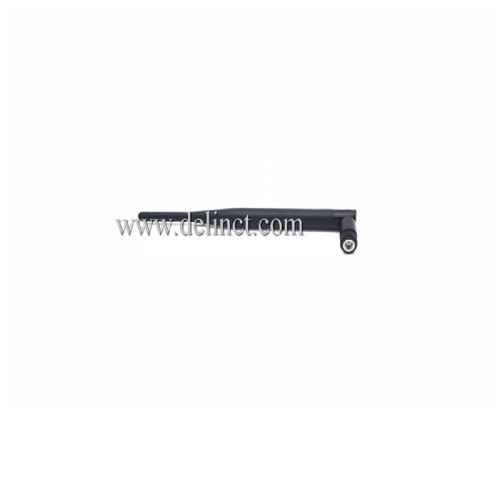

GSM 3G 4G Wideband Antenna

GSM / 3G / 4G wideband antenna is a collection of GSM / 3G / 4G band, only need a set of line to output. GSM Antenna, the second generation global mobile communication system receiving antenna. It uses digital transmission to place analog transmission. Its frequency range GSM: 900 / 1800MHz; CDMA: 800MHz. 3G antenna is the third generation mobile communication system receving antenna. And it uses packet switching to replace the circuit switching in the data transmission. Its frequency range CDMA2000 & WCDMA: 2100MHz; TD-SCDMA: 1880-1920,2010-2025,2320-2370MHz. 4G antenna is the abbreviationthe of the fourth generation of mobile communication and technology. It sets 3G and WLAN in one and is able to transmit high-quality video images which is nearly the same quality with high-definition TV . Its frequency range TDD-LTE: 2320-2370, 2570-2620MHz.

Specifications

Frequency Range(MHz)	824-894/1710-1990, 870-960/1710-1990
V.S.W.R	<=2.0
Gain(dB)	2
Max-Input power(W)	50
Input Impedance(Ω)	50
Polarization Type	V Pol
Cable Type	RG-174
Connector	SMA/ Other
Storage Temperature	-40ºC to +85ºC
Operating Temperature	-40ºC to +85ºC
