5m black GPS External Antenna for magnetic

The function of GPS receiving antenna is transmitting electromagnetic energy from satellite radio signal into power that receiver electron device can ingest and use. Our GPS antenna consists of ceramic antenna and active amplifier. It uses plastic shell packaging and can prevent water and moisture. It is tiny size, and with magnet at the bottom of antenna. Easy to install.

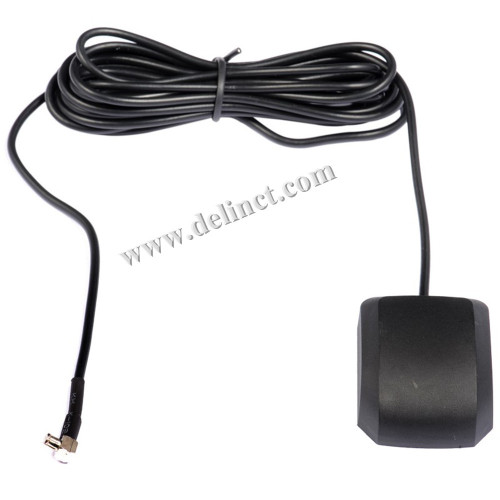

Product Appearance

Size: 48.5*37*17

Mounting: Magnetic

Weight: ＜110g

Connector: SMA

Color: Black

Cable: RG174  5m

Operating Condition

Temperature:-40℃~+85℃

Humidity:  95﹪~100﹪

Temperature:-40℃~+85℃

Humidity:  95﹪~100﹪

Antenna Specifications

Range of Receiving Frequency(MHz): 1575.42±1.1 ±2.5

Center Frequency(MHz): 1575.42±3.0

Band Width(MHz): ≥10  ±0.5

V.S.W.R.:  ≤1.5  ±0.5

Gain(dB): 3 ±0.5

Axial Ratio: 3.0dB ±0.2

Polarization: Right-Handed Circular

characteristic Impedance(Ω): 50

Frequency Temperature Coefficient: 0±10

LNA Specifications

Frequency range: 1575.42±3MHz

LNA gain:  28 dB±1

V.S.W.R:  ≤2.0

Noise figure: ﹤2.0

DC voltage: 3-5V

DC current: ≤20mA
