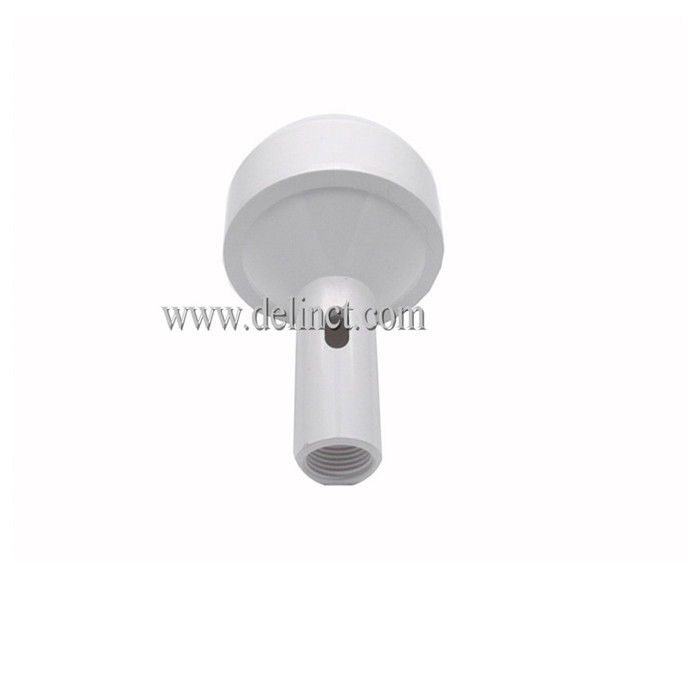

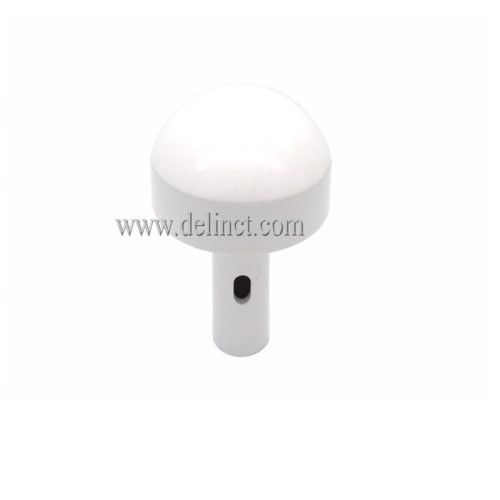

The mushroom hairstyle BD&GPS timing antenna

The mushroom hairstyle BD@GPS timing antenna

Satellite time can be transmitted in real time by using the satellite's high-precision atomic clock,transmitting the carriorsignal from the satellite.Support to marine navigation and timing system,

Product Introduction

High gain

Low noise

Low current

Screw installation

combining with Pole BEIDOU ǁ and GPS antenna

Product Structure

Size: Φ95x125mm                                    Mounting: Screw Installation

Wight: ＜500g                                         Connector: BNC gold-plated straighter

Color:White                                             Cable:SYV-50-3  10m

Operating Condition

Temperature: -40℃~+85℃

Humidity:  95﹪~100﹪

Storage Condition

Temperature:-50℃~+85℃

Dielectric Antenna Specifications

Range of Receiving Frequency:  1561.098 MHz \1575.42 MHz

Band Width(Retum Loss≤-10dB):  ≥10 MHz

V.S.W.R :  ≤1.5

Gain:  3.0 dB

Polarization:  Right-Handed Circular

Impedance(Ω):  50

LNA Specifications

Frequency range:  1561.98 MHz \1575.42 MHz

LNA gain:  ≥30dB

V.S.W.R:  ≤1.5

Noise Figure:  ≤1.5

Reflection loss:  -14dB

P-1 :  ≥ +10dBm

Interference rejection:  30dB±100MHz

DC voltage:  3-5V
