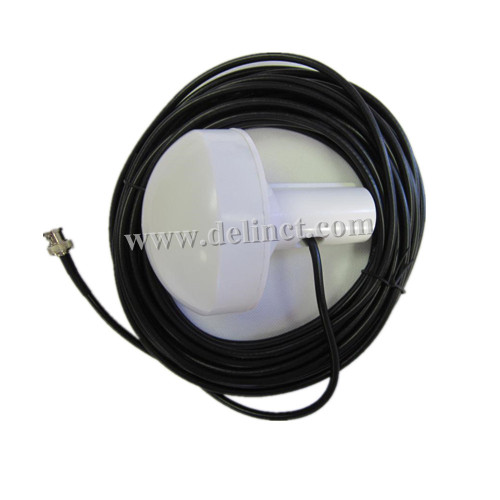

GPS&BeiDou Mushroom Head Timing Antenna with BNC

GPS&BeiDou Mushroom Head Timing Antenna with BNC

GPS Timing Antenna has many characteristics like high gain, low noise, low current, screw installation.

This GPS Timing Antenna combines Pole BeiDou II antenna with  GPS antenna, can support to marine navigation and timing system.

Product Structure

Mounting          Screw Installation

Wight              ＜500(gram)

Connector         BNC gold-plated straighter

Color                White

Cable               SYV-50-3  10 meters

Operating Condition

Temperature:-40℃~+85℃

Humidity:  95﹪~100﹪

Storage Condition

Temperature:-50℃~+85℃

Humidity:  95﹪~100﹪

Dielectric Antenna Specifications

NO                   Item                                                        Specifications

1      Range of Receiving Frequency                         1561.098 MHz \1575.42 MHz

2      Band Width(Retum Loss≤-10dB)                                     ≥10 MHz

3      V.S.W.R(in Center Frequency)                                        ≤1.5

4      Gain                                                                          3.0 dB

5      Polarization                                                         Right-Handed Circular

6      Impedance(Ω)                                                                50

LNA Specifications

NO                   Item                                                        Specifications

1      Range of Receiving Frequency                         1561.098 MHz \1575.42 MHz

2      LNA gain                                                                    ≥30dB

3      V.S.W.R(in Center Frequency)                                        ≤1.5

4      Noise Figure                                                                ≤1.5

5      Reflection loss                                                             -14dB

            P-1                                                                         ≥ +10dBm

6    Interference rejection                                                     30dB±100MHz
