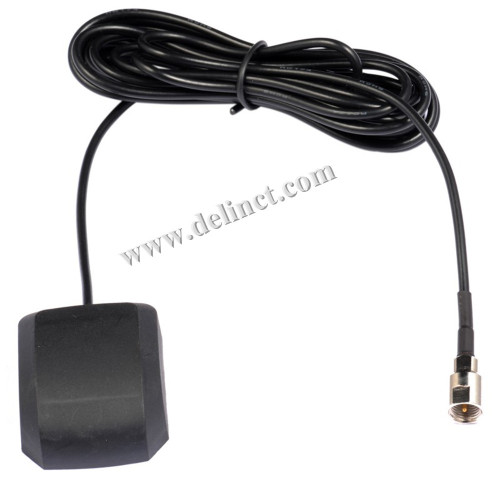

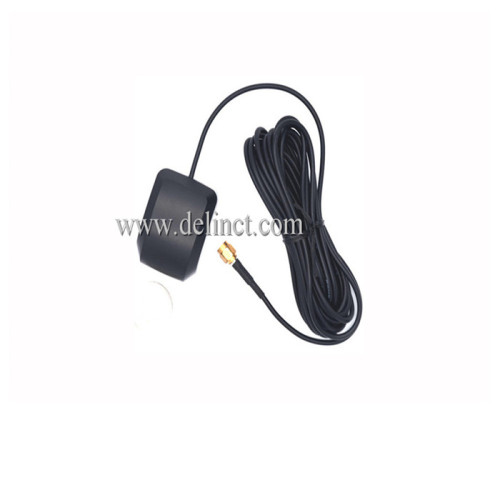

High Gain Black GPS&BD External Antenna

GPS&BD external antenna turn the satellite radio signal into a receiver that can be consumed by the application. GPS&BD receiver antenna adopted the right-handed circular polarization design, it has high gain, low SWR,strong reception and other specifications.

Antenna Appearance

Size: 55*50*17.5mm                                                      Mounting: Magnetic

Weight: <120g                                                              Connector: SMA

Color: Black                                                                    Cable: RG174 3m

Work Conditions

Temperature:  - 40℃~+80C

Humidity: 95﹪~100﹪

Storage Conditions

Temperature: - 45°C~+85°C

Humidity: 95%~100%

Antenna Specifications

Range of receiving frequence(MHz): 1575.42&1561.098±3

Center frequency(MHz): 1575.42&1561.098±3

Band width(MHz): ≥10

V.S.W.R: ≤1.5

Gain(dBi): 3

Axial Ratio: 3.0dB

Polarization: Right-handed cricular

Impedance: 50Ω

Frequency temperature coefficient: 0±10
