External GPS&GLONASS dual mode combined antenna
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Transportation:
- Ocean, Air
- Port:
- Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangzhou |
|---|---|
| Productivity: | 100000/day |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | Ce, RoHS, FCC, ISO2000 |
| HS Code: | 8517707090 |
| Transportation: | Ocean,Air |
| Port: | Guangzhou |

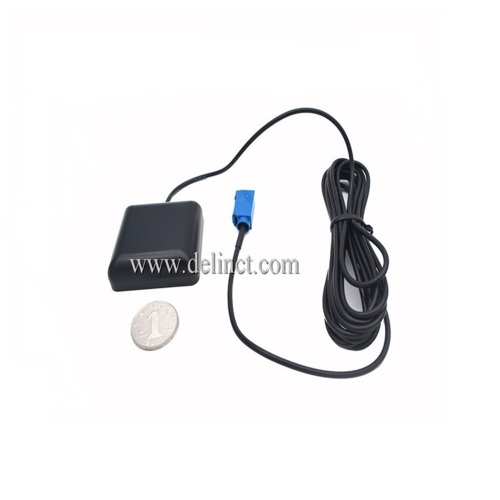

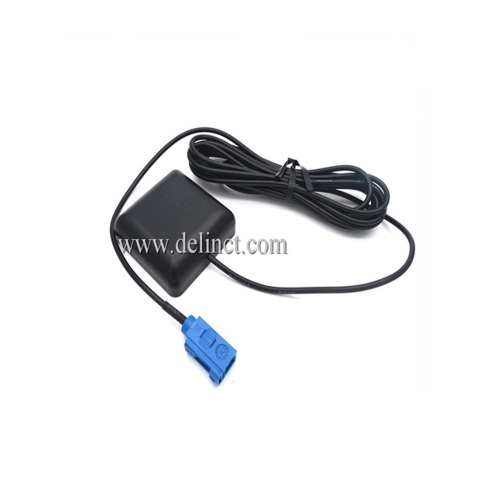

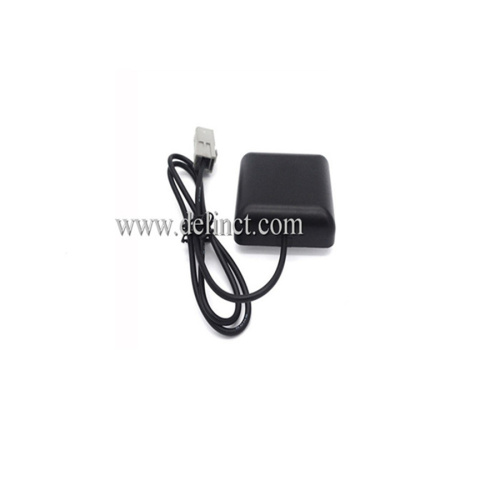

GPS&GLONASS external receiving antenna using the right circularly polarized design, with high gain, low in Bobbi, accept ability etc., the ceramic body and the active antenna amplifier has the advantages of small volume, at the bottom of the antenna is provided with a magnet, convenient installation and use.
Operating condition
Temperature: -40℃~+80℃
Humidity: 95%~100%
Storage condition
Temperature: -40℃~+85℃
Humidity: 95%~100%
Antenna specification
Range of receiving frequency: 1575.42&1600±2
Center frequency: 1575.42&1600
Band width: ≥10
V.S.W.R.: ≤2.0
Gain: 3
Polarization: Right-handed circular
Impedance: 50Ω
Frequency temperature coefficient: 0±10
Amplifier Antenna
Range of frequency: 1575.42&1600±3MHz
Amplifier gain: 26±3dB
V.S.W.R.: ≤2.0
Noise factor: ﹤2.0
Volts D.C.: 3~5V
Direct current: ≤20mA
