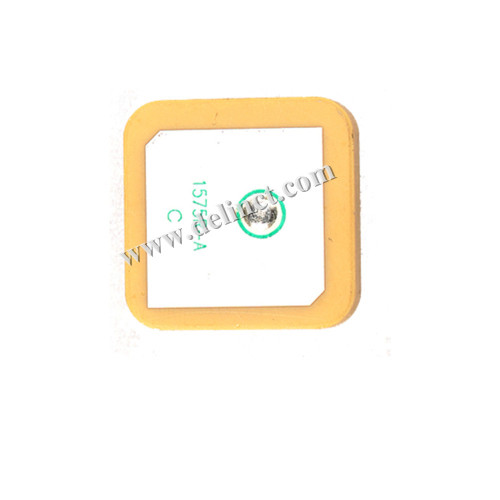

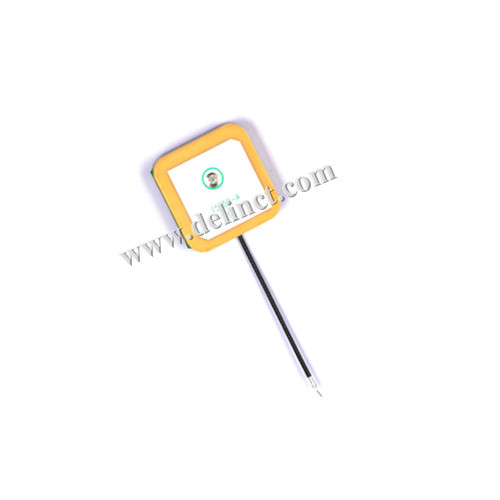

High Quality Antenna GPS Internal Antenna

Antenna Performance

1 Range of Receiving Frequency :824~960    1710~2400

2 V.S.W.R(in Center Frequency) :≤2.0

3 Gain (Zenith)(dBi typ):>2.0

4 Radiation :omnidirectional

5 Power Capacity :50

6 Polarization :perpendicular

7 Connector :Typ SMA gold plated straight male head

8 Size(mm)  :120*20*5

9 Color :black

10 Weight(gram): ≥30

materials and coatings

1  inner conductor  Brass Wire gold-plating hard gold

2 dielectric teflon

3 hull yellow metal(HPb59-1) gold-plating  hard gold

electrical performance

1 characteristic impedance : 50Ω

2 temperature range :-65~+165ºC

3 frequency range : 0~12GHZ

4 Dielectric Strength :1000V(rms)

5 contact resistance : inner conductor≤3mΩouter conductor ≤2mΩ

6 insulation resistance  :≥5000MΩ

7 voltage standing-wave ratio  :≤1.25(flexible cable)

8 Salt spray test (HRS): 24
