Ceramic High Gain Antenna GPS Internal Antenna

product presentation

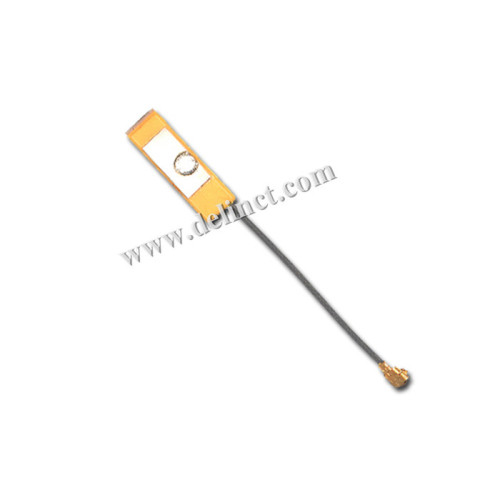

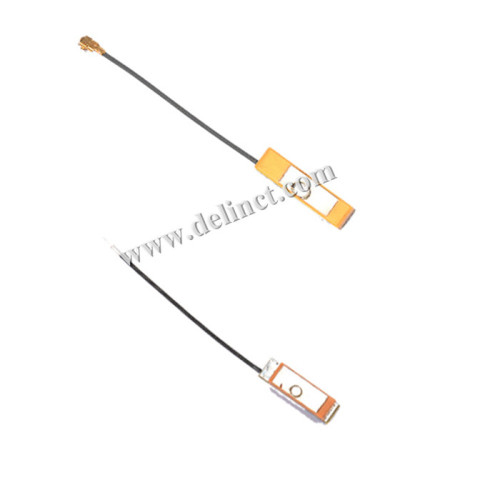

The GPS internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:

1. low voltage: 2.7~3.3V

2.: low noise coefficient is ≤1.5

3. gain: 16 ± 1dB

Antenna Structure

1 size: 6×16×6.7mm

2 connector : IPEX head

3 connecting line  :1.13 wire

4 weight :< 10 grams

5 working temperature  :-40ºC~80ºC

6 Operation humidity :10%~95%

7 storage temperature  :-45ºC~85ºC

8 Storage humidity: 10%~95%

9 length of lead : 80mm

technical characteristics

Antenna body

1 center frequency : 1575.42Hz

2 tape width :10MHZ

3 Gain (maximum direction) :0dB

4 Gain (10 degrees elevation) :-5dB

5 polarization :Right-handed polarization

6 impedance : 50Ω

(the above index test based on 25 * 25MM ground)

Low Noise Amplifier

1 center frequency : 1575.42MHz

2 gain :16dB±1dB

3 noise factor ≤1.5dB

4 standing-wave ratio (SWR) :≤1.5dB

5 working voltage :2.7~3.3V

6 impedance  :50Ω
