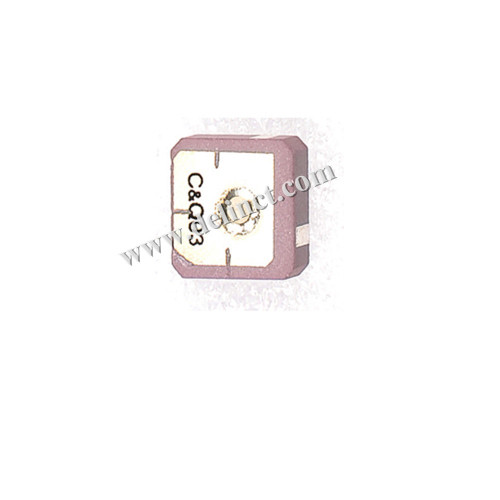

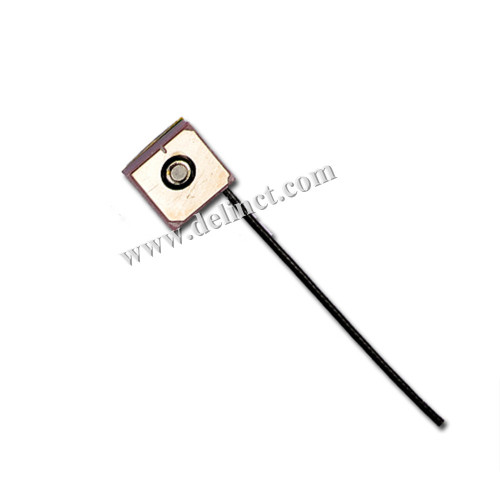

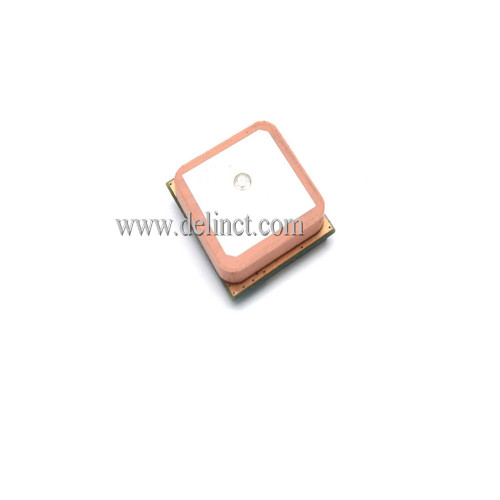

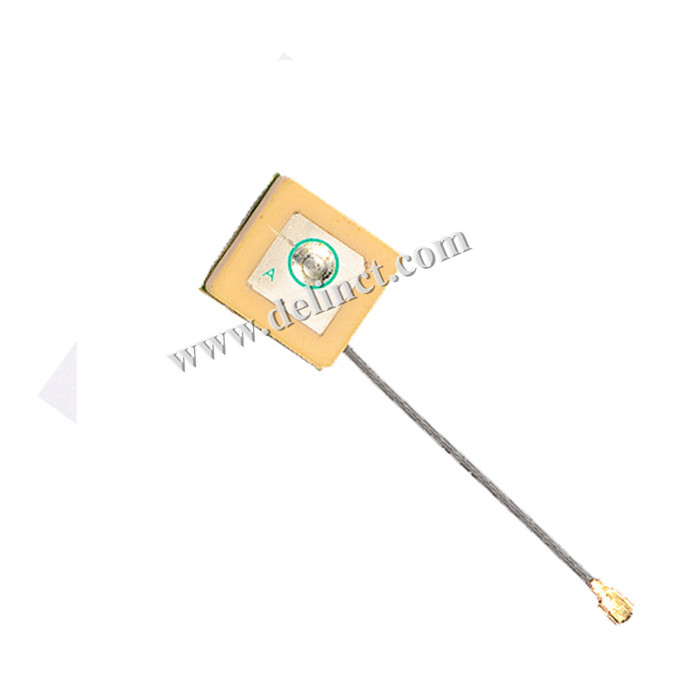

Ceramic Antenna GPS Internal Antenna

Antenna Structure

1 size :25×25×8.7mm

2 connector : MMCX gold plated male head bending

3 connecting line : RG178 line

4 weight :20 grams

5 working temperature : -40ºC~80ºC

6 Operation humidity :10%~95%

7 storage temperature  :-45ºC~85ºC

8 Storage humidity :10%~95%

9 length of lead : 80mm

Technical Characteristics

Antenna body

1 center frequency  :1575.42MHz&1600MHz

2 tape width: 10MHZ

3 Gain (maximum direction):3dB

4 Gain (10 degrees elevation) :-5dB

5 polarization :Right-handed polarization

6 impedance : 50Ω

(the above index test based on 25 * 25MM ground)

Low Noise Amplifier

1 center frequency : 1575.42MHz&1600MH

2 gain: 26dB±2dB

3 noise factor :≤2.0dB

4 standing-wave ratio (SWR) :≤2.0 dB

5 working voltage: 2.7~3.3V

6 working current :10±2mA

7 impedance  :50Ω
