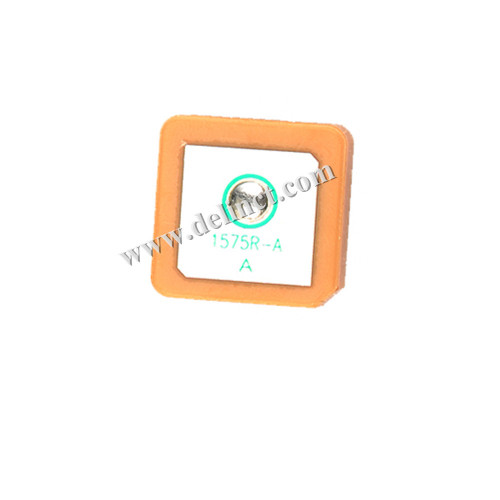

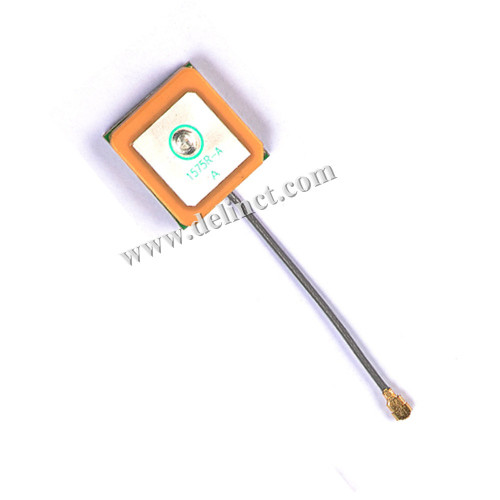

GPS&Glonass Internal Antenna Ceramic High Gain Antenna

Product presentation

The GPS&Glonass internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:

1. low voltage: 2.7~3.3V

2.: low noise coefficient is less than 2

3. gain: 20 ± 2dB

Antenna Structure

1 size :15×15×6.7mm

2 connector  :SMA gold plated straight male head

3 connecting line : 1.13thread

4 weight  :< 40 grams

5 working temperature  :-40ºC~80ºC

6 Operation humidity: 10%~95%

7 storage temperature  :-45ºC~85ºC

8 Storage humidity: 10%~95%

9 length of lead : 100mm

Technical characteristics

Antenna body

1 receive frequency  :1575&1600MHz + 5MHz

2 center frequency  :1575&1600MHz

3 tape width :5MHZ

4 Gain (maximum direction) :0dB

5 Gain (10 degrees elevation) :-5dB

6 polarization :Right-handed polarization

7 impedance  :10Ω

Low Noise Amplifier

1 center frequency : 1575&1600MHz

2 gain: 21dB±2dB

3 noise factor :≤2.0dB

4 standing-wave ratio (SWR) :≤2.0 dB

5 working voltage :2.7-3.3V

6 working current : 8 + 2mA

7 impedance  :50Ω
