GPS&Bd Internal Antenna Ceramic High Gain Antenna

product presentation

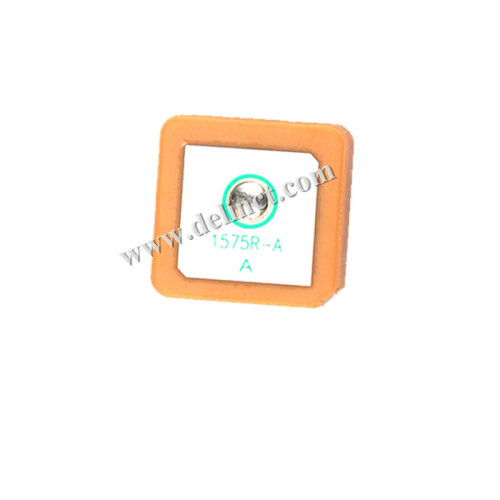

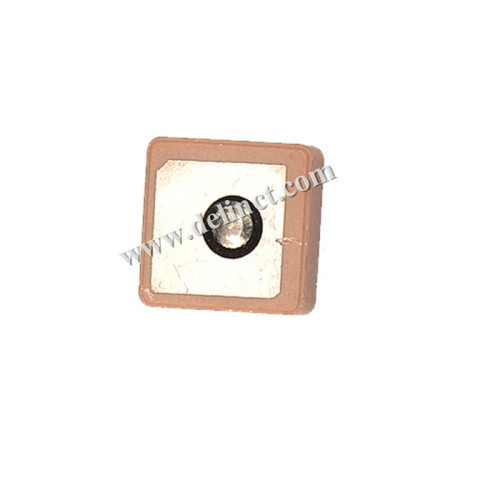

The GPS&BD internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:

1. low voltage: 2.7~3.3V

2.: low noise coefficient is less than 2

3. gain: 20 ± 3dB

Antenna Structure

1 size :25×25×6.7mm

2 connector : IPEX

3 connecting line  :1.13thread

4 weight  :15gram

5 working temperature:  -40ºC~80ºC

6 Operation humidity :10%~95%

7 storage temperature  :-45ºC~85ºC

8 Storage humidity :10%~95%

9 length of lead : 100mm

technical characteristics

Antenna body

1 center frequency  :1575.42&1561.09MHz

2 tape width: 10MHZ

3 Gain (maximum direction) :0dB

4 Gain (10 degrees elevation): -5dB

5 polarization :Right-handed polarization

6 impedance  :10Ω

7 Size (18x18mm)

Low Noise Amplifier

1 center frequency  :1575.42&1561.09MHz

2 gain:20dB±3dB

3 noise factor :≤2.0dB

4 standing-wave ratio (SWR) :≤2.0 dB

5 working voltage :2.7-3.3V

6 working current  :≤12mA

7 impedance  :50Ω
