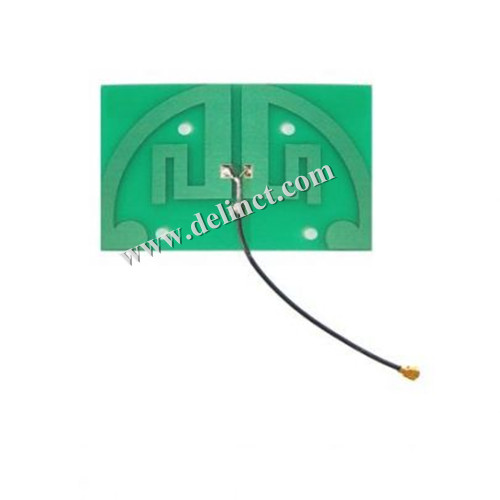

PCB Antenna WiFi Internal Antenna

WIFI antenna features:

1 delicated outlook

2 small size

3 Full-time job

4 Low standing wave, anti-interference

Applications: wireless monitoring, positioners, mobile devices, etc.

WIFI antenna performance parameters

Electrical Specifications

1 product name: WIFI built-in antenna

2 frequency range :2400-2500MHz 4950-5850MHz

3 input impedence : 50Ω

4 standing-wave ratio (SWR): ≤2

5 Gain: ≤2

6 Polarization mode: perpendicular

7 directivity omnidirectional

8 Antenna material PCB Dimension: 23.5×20mm

9 storage temperature  -45ºC~+ 85ºC

10 working temperature  -40ºC~+ 80ºC

11 Cable Length 190mm

12 connecting line : RG178 line

13 connector : No (after 2:1:1)
