GPS&Bd Internal Antenna Ceramic High Quality Antenna

product presentation

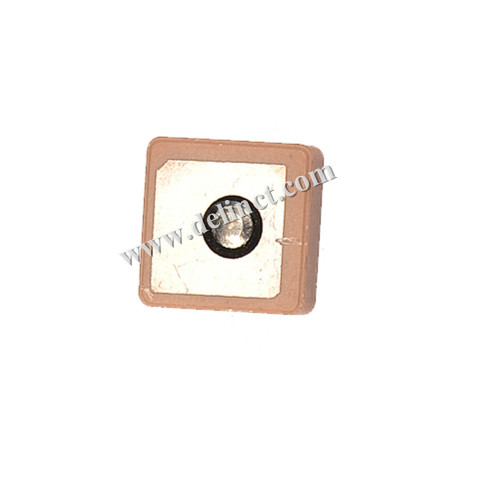

The GPS&BD internal antenna consists of ceramic antenna, low noise amplifier and feed cable. It has the following characteristics:

1. low voltage: 2.7~3.3V

2.: low noise coefficient is less than 2

3. gain: 20 + 2dB

Antenna Structure

1 size 18×18×6.7mm

2 connector  IPEX

3 connecting line  1.13thread

4 weight  15gram

5 working temperature  -40ºC~80ºC

6 Operation humidity 10%~95%

7 storage temperature  -45ºC~85ºC

8 Storage humidity 10%~95%

9 length of lead  100mm

technical characteristics

Antenna body

1 center frequency  1575.42&1561.09MHz

2 tape width 10MHZ

3 Gain (maximum direction) 0dB

4 Gain (10 degrees elevation) -5dB

5 polarization Right-handed polarization

6 impedance  10Ω

Low Noise Amplifier

6 center frequency  1575.42&1561.09MHz

7 gain 20dB±3dB

8 noise factor ≤2.0dB

9 standing-wave ratio (SWR) ≤2.0 dB

10 working voltage 2.7-3.3V

11 working current  ≤12mA

12 impedance  50Ω
