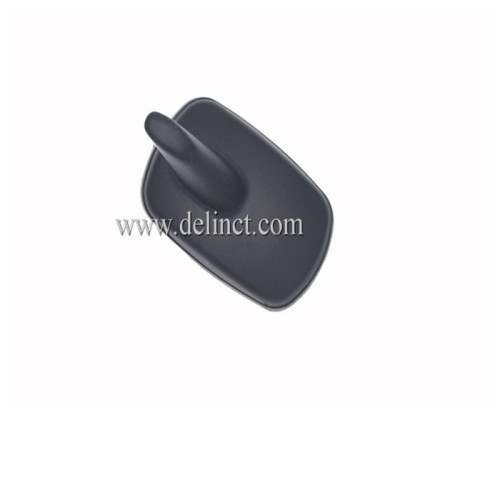

Shark fin antenna High Gain GPS Antenna

This shark fin antenna is consist of GPS&GSM&WIFI&2.3G , can receive satellite positioning signals GPS, WIFI signal, 2.3G satellite radio, is a kind of high gain, high sensitivity, stable general antenna combinations. It has the advantages of small volume, light weight, durable, high the accuracy and sensitivity, low power consumption, high reliability and other excellent properties, and it can be used with multiple receivers, widely used in vehicle navigation dispatching, vehicle tracking and monitoring, control and other fields.

GPS antenna characteristics

1          Operating Voltage Range                1575.42MHz

2          Operating Voltage Range                 3.0-5.0 V DC

3          Operating Current Range                 10-16mA

4          V.S.W.R(in Center Frequency)         ＜2 (1575.42MHz)

5          Amplifier Gain                                 30±2dB

6           Noise limiter                                  ≤3

7          Output Impedance                         50Ω

GSM Antenna

No.         Item                              Specifications

1          Frequency                        824~960 MHz/1710~1990 MHz/1920~2170 MHz

 2            V.S.W.R(5m)                 ≤2.0:1

3             Gain(Zenith)                   2 dBi

4            Impedance                      FAKRA

WIFI Antenna characteristics

No.                Item                    Specifications

1                  Frequency             2400-2500MHz

2                  Gain                      3dBi

3                  V.S.W.R                <2.0:1

4                 Connector               FAKRA

5                 Outpot impedance    50Ω

2.3G  Satellite Radio

Operating frequency: 2.2-2.4G

Gain: 3dBi

V.S.W.R: <2.0:1

Connector: FAKRA

Output impedance: 50Ω

Working Condition

     Temperature:-40℃~+85℃

     Humidity:  95%~100%

 Storage Condition

     Temperature:-45℃~+85℃

     Humidity:  95%~100%
