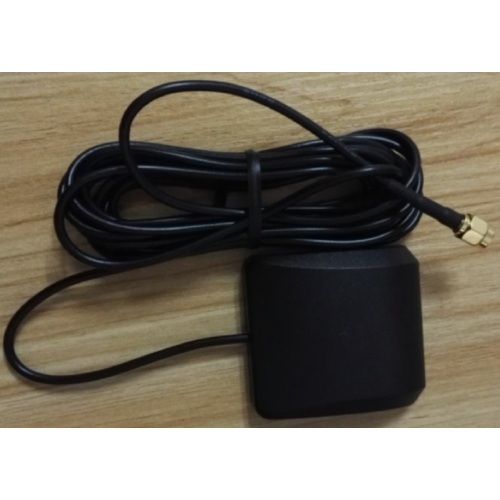

Large GPS External Antenna with SMA

Effect of GPS receiving antenna, the electromagnetic wave energy conversion radio signal from the satellite receiver into the electronic device can supply intake applications. Our GPS external antenna is composed of ceramic body and active antenna amplifier. The plastic shell package, has the characteristics of waterproof, at the bottom of the antenna is provided with a magnet. Convenient installation and use.

Operating conditions

Temperature: -40°C~+80°C

Humidity: 95%~100%

Storage conditions

Temperature: -45°C~+85°C

Humidity: 95%~100%

Antenna Specifications

Range of receiving frequency: 1575.42±3 MHz

Center frequency: 1575.42 MHz

Band width: ≥10 MHz

V.S.W.R.: ≤1.5 MHz

Gain: 3dB

Polarization: Right-handed cricular

Impedance: 50 Ω

Frequency temperature coefficient: 0±10

Amplifier Specifications

Range of frequency: 1575.42±3MHz

Amplifier gain: 26±3dB

V.S.W.R.: ≤2.0

Noise factor: ≤2.0

Volts D.C.: 3~5V

Direct current: ≤18mA
