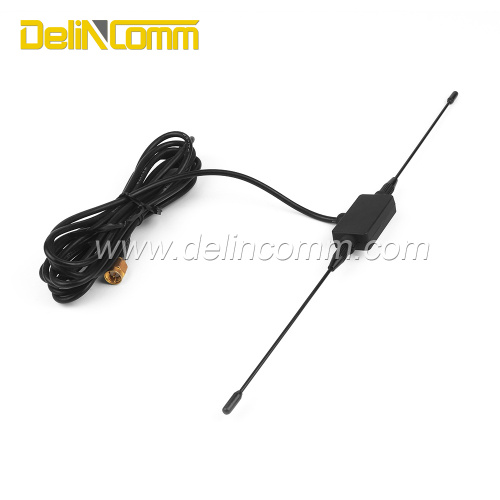

T-Type Digital Television Antenna 3M Sticker

T-Type Digital Television Antenna 3M Sticker is a high gain transmission receiving antenna which is specifically set up for digital TV. This antenna has beautiful appearance, convenient installation, wide frequency range, good performance, stable reception , and anti salt fog corrosion resistance, anti-jamming characteristics. They are all through strict ex-factory analysis by import network analyzer. Sticky paper adhered to the bottom of the antenna can be used on different items.

  Mechanical Index

  Size:                    205X22mm               Mounting                 Sticking

  Weight:                50gram                    Connector              SMA

  Shell Color:          Black Cable             RG174                    3m

  Antenna Characteristics

   Item                                                                 Specifications

   Range of Receiving Frequency(MHz)             470-862

   Band Width(MHz)                                            392

   V.S.W.R(in Center Frequency)                        ≤1.5

   Gain (Zenith)(dBi type)                                    2

   Polarization                                                      Linear polarization

   Impedance(Ω)                                                 50
