Car Antenna dvb-t mobile/tv gps antenna

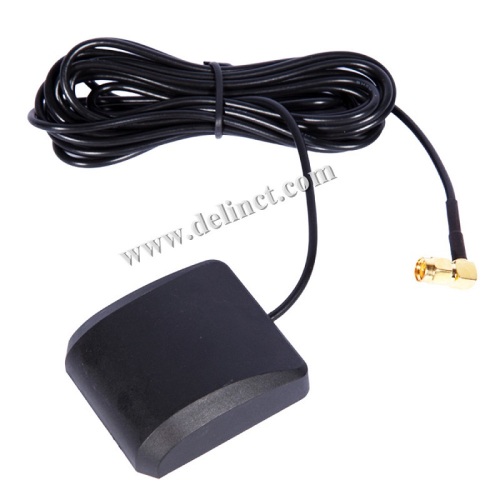

Item of GPS active antenna

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

3dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

2dB(max)

Dimension

48*37*15mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

3~5V DC

Current Consumption

10~26mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40°C~+85°C

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
