915MHz 5dBi Omni Antenna with SMA

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB

Transportation:: Ocean, Air

Port:: Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	guangzhou
Productivity:	100000/Day
Supply Ability:	100000/Day
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB
Certificate:	Ce, RoHS, FCC, ISO2000
HS Code:	8529109090
Transportation:	Ocean,Air
Port:	Guangzhou

Product Description

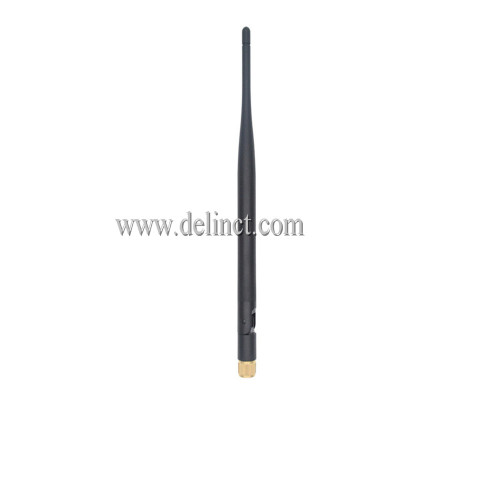

915MHz 5dBi Omni Antenna with SMA Male Interface for RF Wireless Transceiver. 915MHz Antenna receives 915MHz network signal, is an active RFID positioning system. Based on the lumped component circuit, this antenna realized the resonance characteristic of 915 MHz Antenna and tag antenna & tag chip achieved 50 Ω impedance horses. 915MHZ antenna is usually used for amateur radio, smart home and so on.

Electrical Characteristics

1. 915MHz Antenna

NO	Item	Specifications
1	Range of Receiving Frequency(MHz)	910-920MHz
2	Band Width(MHz)(Retum Loss≤-10dB)	≥10
3	V.S.W.R(in Center Frequency)	≤2.0
4	Gain (Zenith)(dBi typ)	≥3
5	Operating Temperature	-40℃~+80℃
6	Radiation	Omnidirectional
7	Power Capacity(W)	50
8	Polarization	Vertical
9	Connector Type	SMA Gold Plated elbow
10	Size(mm)	17.5*107
11	Color	Black

2. Mechanical

No.	Item	Specification
1	Cable	RG174
2	Connector	SMA or others

3. Environmental

No.	Item	Specification
1	Operating Temperature	-40℃~+85℃
2	Relative Humidity	Up to 95%
3	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
4	Environmentally Friendly	ROHS Compliant
