Product Description

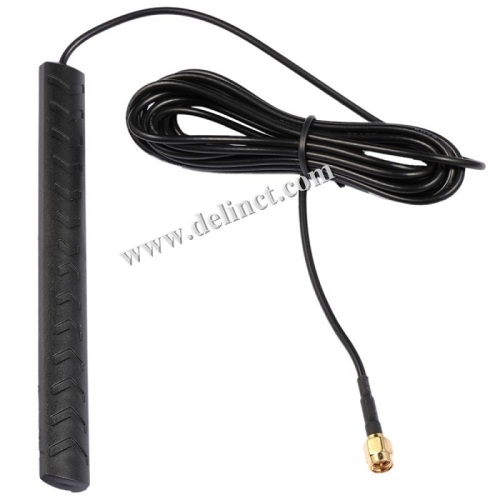

Customized Connector 433 MHz Flat Antenna

433MHz Antenna has been widely used in a variety of positioning scenarios. Aimming at the demand of miniaturization of electronic tags in the actual scene, we realized the miniaturization design of the label PCB antenna with bend line in the semicircle with radius of 14 mm.

Electrical Characteristics

1. 433MHz Antenna

No.	Item	Specifications
1	Center Frequency(MHz)	433±3MHz
2	Band Width(MHz)	CF±5MHz
3	V.S.W.R(in BW)	<2.0
4	Gain(Zenith)	2 dBi
5	Polarization	Linear
6	Impedance	50 Ω

2. Mechanical

No.	Item	Specification
1	Cable	RG174
2	Connector	SMA or others
3	Radome Material	ABS
4	Mounting Method	Adhesive

3. Environmental

No.	Item	Specification
1	Operating Temperature	-40℃~+85℃
2	Relative Humidity	Up to 95%
3	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
4	Environmentally Friendly	ROHS Compliant
