SMT pick and place machine for PCB assembly

Product introduction

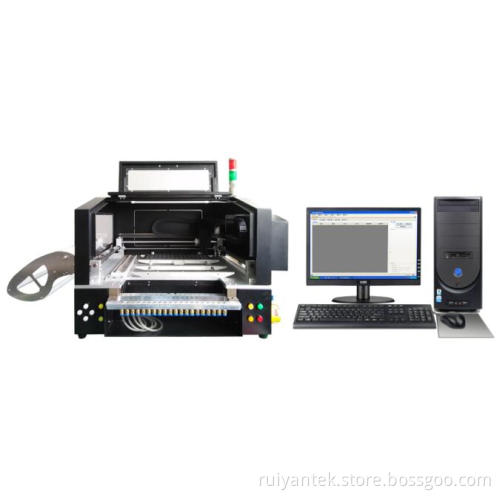

SMT6000V is dedicated to research and develop electronic products, it is a small desktop type machine which suits for small and medium-sized enterprise and assembly line is developed by our company.

This machine has superior function 1.small batch production.  2. Experiment, research and development. 3. Sample Preparation and trial-produce. 4. Processing and Mounting LED SMT, etc.

The main characteristics of SMT6000V are 1 small volume, 2 high speed mounting, 3 high precision when it works, 4 simple operation, 5 stable running and 6 competitive price. Not only can help you to avoid the mounting instability by man-made, but also can help you to solve the problem like high labor cost, high site cost, low production efficiency, and so on. Our product can greatly improve the productivity.

Product Technical Specification

Product features

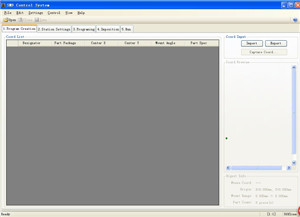

Ø On the basis of programming and control system of Windows XP, it is supported to import the coordinate file and online programming

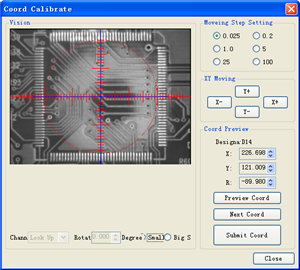

Ø vision correction

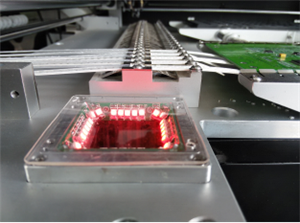

  Mounting vision correction

Machine tool vision correction

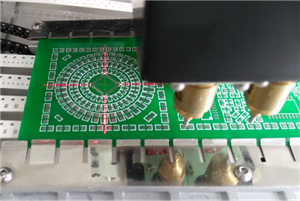

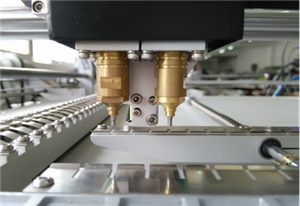

Ø 2 Placement Heads can work in the same time and the mounting range is big. It supports big and thick component. 4 placement heads can be chosen.

Ø Laser alignment, online programming

Ø Vacuum detection, intelligent discriminant good or bad adsorption

Ø Detection of material lack, automatic alarm

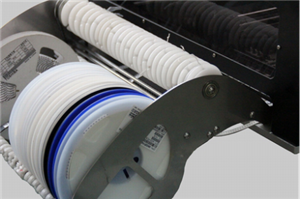

Ø Support multi-feeding ways: feeder belt, feeder, IC tray, IC material tray

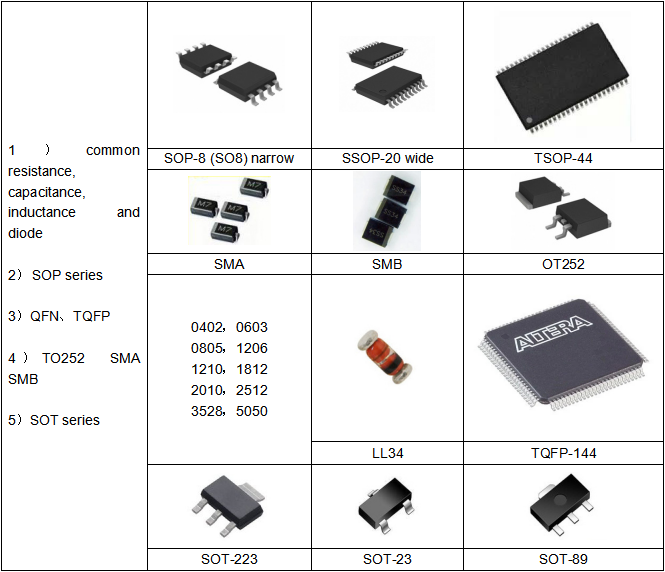

Encapsulation apply
