Smart Card Milling and Pulling Out Wire Machine

Smart Card Milling and Pulling Out Wire Machine is one model of dual interface card machines, which can mill cavities on finished dual interface cards and then pulling out embedded antenna. It integrates functions of cavities milling, wire pulling out, wire collating, detecting and collecting. Highly automation helps reduce rejection rate and improve productivity greatly.

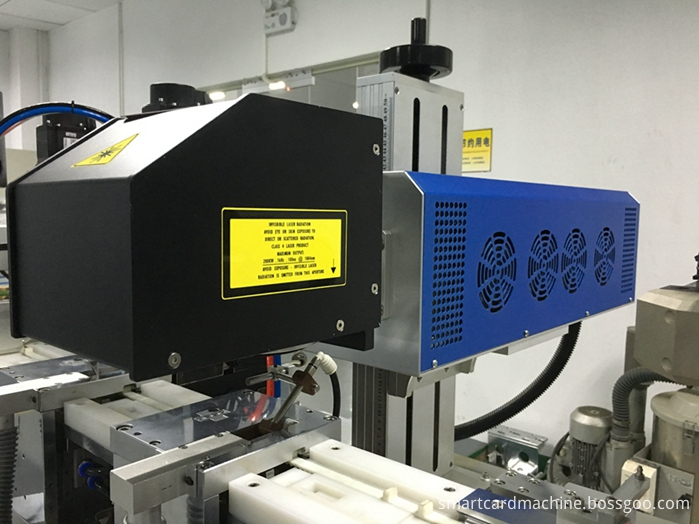

Compared to traditional wire pulling out machine, this model of slot milling and wire pulling out machine adopts laser technology to pull out wire, which has higher precision and working speed than manual pulling or mechanical wire pulling methods.

With integration of advance technology, stable running performance and high working precision make it the best choice to pull out wire of dual interface card.

Milling station is controlled by servo motor. X-Y axis accuracy: ±0.01 mm, Z axis accuracy:  ± 0.01 mm and flatness accuracy:  ±0.02 mm.

High precision milling and pulling head guarantee the accuracy of milling and antenna pulling out processes, only in this way could keep coil away from damage.

Technical parameter:

Company Profile:

Shenzhen Yuanmingjie Technology Co., Ltd was founded in 2010 for research and development of intelligent manufacturing equipment. With many years innovations and development, Yuanmingjie has become the High Technology Corporation who has got high reputation in China and overseas. Yuanmingjie is the Shenzhen innovative enterprise and the member of Shenzhen software industry association, we also got Guangdong province credible enterprise identification.

Yuanmingjie integrated R&D, manufacturing and sales, who concentrates on supplying better equipment and supporting facilities solution for smart card factories. Our main products include production line for contact smart card, contactless smart card, dual interface smart card, RFID electrical labeling and personalized equipment.

Elites are valued by Yuanmingjie technology, lots of professionals with more than 10 years experience in equipment development gather here. With so many years of technical innovation and experience, Yuanmingjie breakthrough the traditional dependence of domestic enterprises on foreign techniques, reaches a leading position in China, who firstly adopts advanced Ultrasonic Embedding technique and Precision Vibrator Bowl. Meanwhile dual interface smart card equipment and milling and embedding two in one equipment have got National Invention Patent and CE certificate.

Spirit of Yuanmingjie: To develop ourselves by guide of market, to gain customers by credibility, to gain reputation by better quality.

Mission of Yuanmingjie: To create value for customers and society constantly.

Vision of Yuanmingjie: With continual technical innovation, wisdom and efforts from members of yuanmingjie, we will fulfill customers current need and create high needs, to be the top automatic equipment and technical solutions supplier.
