UHF Waterproof GPS 2-Way Radios Interphone Intercom
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 500 Set/Sets
- Min. Order:
- 500 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs |
| Supply Ability: | 50000pcs/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE/FCC/Rohs |
| HS Code: | 8517122000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Sloth GPS Track and train handheld ,UHF Waterproof GPS 2-Way Radios Interphone Intercom YX588A, Our handheld gps walkie talkie now only use for group intercom , but also can use for the dog training. Please find our multi-functional GPS positioning two way radio range of application: Security, City Inspectors, Police, Hotel Staff, Traffic police, Outdoor Sports management, Outdoor exploration,scientific investigation, hunting and other company or individuals whom need two way radio devices. It has high digital audio quality - It can offer much more clear audio in larger range by digital correction and squelch suppression.
Model : YX588A
(Gps Walkie Talkie, Handheld Gps Walkie Talkie, Gps Two Way Radio, Satellite Walkie Talkie, Two Way Radio, GPS 2-Way Radio)
Function:
1. groups,network groups( connect with APP of background server, 3 protections GPS multi-function walkie talkie )
2. IP67 grade waterproof
3. 2Watt two way intercom / data transmission ( Open field 9KM ) (UHF 400MHz-480MHz)
4. GPS location area measurement
5. GPS/Wifi location ( suitable for indoor )+ ( Location sharing )
6. Pet training (Need matching use with pet locator and trainer )
7. For help/search and rescue
8. Location information reporting
9. Own position location and partner position relationship acquisition
10. Electronic fence

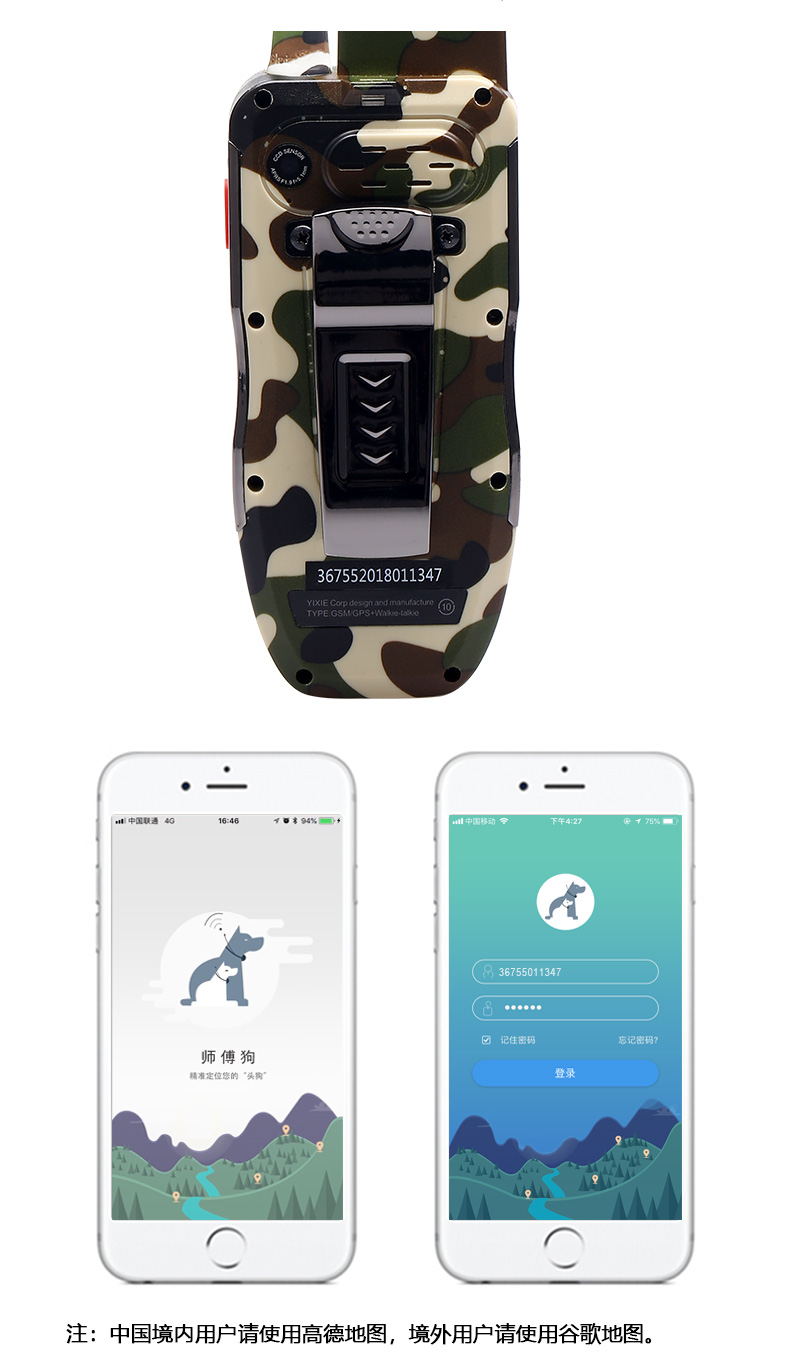

Pictures:
Specification:
| GSM module: | MTK |
| GPS module: | UBLOX7020 |
| EDGE/GPRS: | Downlink only/Multi-slot Class 12 |
| Camera: | 0.3 mega-pixel |
| GSM frequency: | 850/900/1800/1900Mhz (4 Band) |
| Compass: | 9 axis electronic compass |
| GSM/GPS antenna: | Built-in |
| Positioning accuracy: | 5-20 meters |
| Working charging voltage: | 5V DC |
| WIFI:802.11B | 802.11B |
| standby current | <10mA |
| Working current: | <150mA / 5V |
| Battery: | 4000mAh |
| Working temperature: | -20 ℃ to +55 ℃ |
| Storage temperature : | -35 ℃ to +70 ℃ |
| IP grade: | IP67 |
| Dimension: | 155mm(L)*48mm(W)*32mm(H) |
| Intercom power : | 2 Watt |
| Screen Specifications : | 2.4 inch TFT, 320*320 |
| SIM card: | Micro SIM card |
| Intercom distance: | Open visible field 9KM |
| Built-in memory card: | 4G |
| Wireless data transmission: | UHF |
| Battery working time : | High power 18 hours, Low power 72 hours |
| Port: | Magnetic Charging port |
| GPS Data retention: | History route 200 piece, Coordinates 10000 point |
| Intercom data transmission antenna : | External |
| Key: | Standard 19 keys |
Intercom features:
The FM demodulation technology based on digital signal processing technology;
The frequency range: 400M ~ 480MHZ;
The frequency stability: 2.5PPM (20~60 C)
The step frequency can be selected: 5K/6.25K/12.5K/25K;
The output power of the optional RF: high power 2W/ low power 1W
The voice encryption (scrambling) function
The SMS short message transceiver function, serial communication baud rate 9600,
The air data rate of 1200 baud rate;
The built-in CTCSS, CDCSS codec;
The automatic arc end function;
The digital volume (1-9) adjustable;
9) adjustable; unction (0-8) adjustable;
The sensitivity of MIC software adjustable (1-8)
The high receiving sensitivity: -122dBm;
The ultra low power sleep mode (0.1uA);
The scope of work voltage: 3.3 ~ 5.0V DC.
The communication distance: open up to 9 km
