Outdoor Handheld GPS Two way radio
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 500 Set/Sets
- Min. Order:
- 500 Set/Sets
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs |
| Supply Ability: | 50000pcs/month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE/FCC/Rohs |
| HS Code: | 8517122000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Outdoor Handheld GPS Intercom Walkie Talkie GPS Two way radio:
Our GPS interphone using the intercom APRS (Auto Position Report System) automatic Position reporting System.
Products can be carried the location information is passed to the similar equipment;
Model : YX588A
1 the intercom APRS (Auto Position Report System) automatic Position reporting System.
2. Use the intercom APRS target groups of the equipment
3. The intercom APRS equipment function
Function:
1. groups,network groups( connect with APP of background server, 3 protections GPS multi-function walkie talkie )
2. IP67 grade waterproof
3. 2W two way intercom/ data transmission ( Open field 9KM ) (UHF 400MHz-480MHz)
4. GPS location area measurement
5. GPS/Wifi location ( suitable for indoor )+ ( Location sharing )
6. Pet training (Need matching use with pet locator and trainer )
7. For help/search and rescue
8. Location information reporting
9. Own position location and partner position relationship acquisition
10. Electronic fence

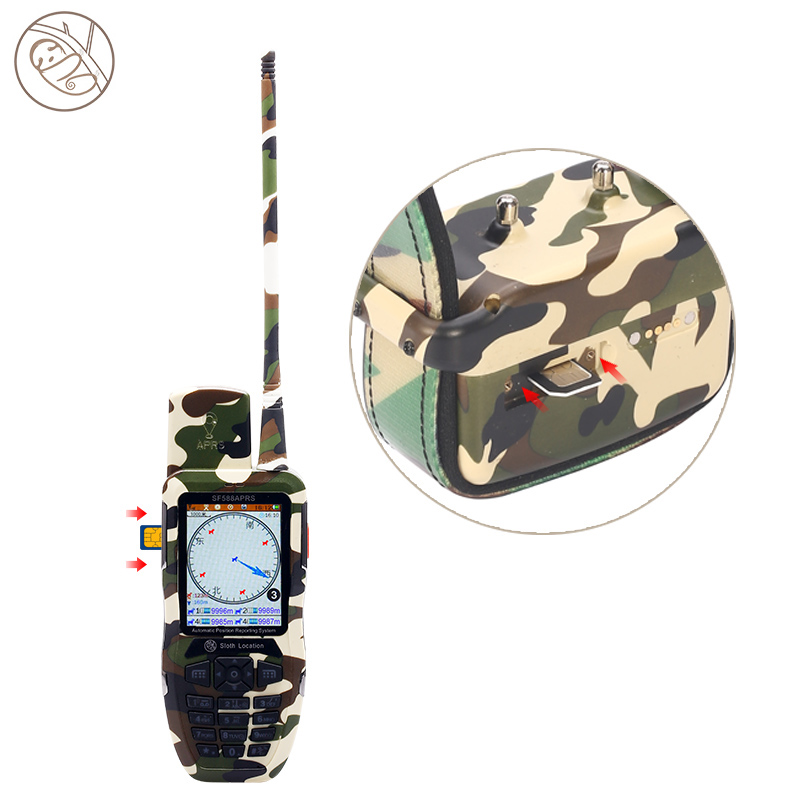

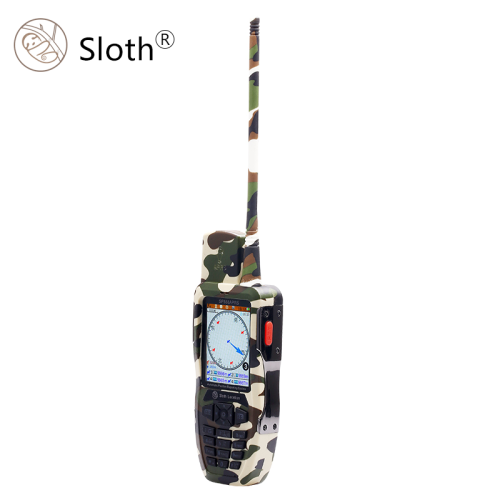

Pictures:
Specification:
| GSM module: | MTK |
| GPS module: | UBLOX7020 |
| EDGE/GPRS: | Downlink only/Multi-slot Class 12 |
| Camera: | 0.3 mega-pixel |
| GSM frequency: | 850/900/1800/1900Mhz (4 Band) |
| Compass: | 9 axis electronic compass |
| GSM/GPS antenna: | Built-in |
| Positioning accuracy: | 5-20 meters |
| Working charging voltage: | 5V DC |
| WIFI:802.11B | 802.11B |
| standby current | <10mA |
| Working current: | <150mA / 5V |
| Battery: | 4000mAh |
| Working temperature: | -20 ℃ to +55 ℃ |
| Storage temperature : | -35 ℃ to +70 ℃ |
| IP grade: | IP67 |
| Dimension: | 155mm(L)*48mm(W)*32mm(H) |
| Intercom power : | 2 Watt |
| Screen Specifications : | 2.4 inch TFT, 320*320 |
| SIM card: | Micro SIM card |
| Intercom distance: | Open visible field 9KM |
| Built-in memory card: | 4G |
| Wireless data transmission: | UHF |
| Battery working time : | High power 18 hours, Low power 72 hours |
| Port: | Magnetic Charging port |
| GPS Data retention: | History route 200 piece, Coordinates 10000 point |
| Intercom data transmission antenna : | External |
| Key: | Standard 19 keys |
Intercom features:
The FM demodulation technology based on digital signal processing technology;
The frequency range: 400M ~ 480MHZ;
The frequency stability: 2.5PPM (20~60 C)
The step frequency can be selected: 5K/6.25K/12.5K/25K;
The output power of the optional RF: high power 2W/ low power 1W
The voice encryption (scrambling) function.
The SMS short message transceiver function, serial communication baud rate 9600,
The air data rate of 1200 baud rate;
The digital volume (1-9) adjustable;
9) adjustable; unction (0-8) adjustable;
The sensitivity of MIC software adjustable (1-8)
The high receiving sensitivity: -122dBm;
The ultra low power sleep mode (0.1uA);
The scope of work voltage: 3.3 ~ 5.0V DC.
The communication distance: open up to 9 km
