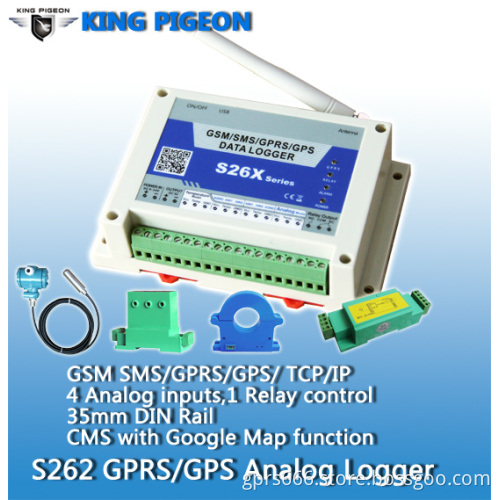

GPRS Temperature/Data Logger

1. Brief introduction
1.1 Introduction
The GPRS Temperature/Data Logger inbuilt industrial quad band GPRS Engine inside, it provides 4
temperature input that each temperature sensor supports ultra-high-high-low-ultra-low 4 level
monitoring, and 1 digital relay output. It can be used for field temperature monitoring in the worldwide.
And the internal memory can save the historical for half a year for review. It provides daily report,
schedule upload, event upload by the GPRS to monitoring center or by SMS to the user mobile
phone directly.
Just dial from Authorized User number or send SMS to the GPRS Temperature Logger, the relay
output will be switched on or off. There are no call costs, the GPRS Temperature Logger rejects the
call from authorized number then carries out the turn ON/OFF action.
In one word, the GPRS Temperature Logger is the best choice for lots of temperature monitoring
applications.

1.2 Technique Parameters

Items
Descriptions
DC Power Supply:  9~24VDC 2A
Power Consumption:  12V input Max. 50mA/Average 50mA
GSM Frequency : Quad-band, GSM850/900/1800/1900Mhz
SIM Card : Supporting 3V SIM Card
GSM Antenna:  50 Ω SMA Antenna interface
Internal Memory:  up to one year at record once per 5 minutes.
Relay Output:  1, Dry Contact, NC or NO, 10A/240VAC
Temperature Input : 4*DS18B20 (S260/S261)
Analog Input:  4 Channel, 12bits, 0~20mA, 4~20mA, 0~5V (S262/S263)
Backup Battery:  900mAH, last 18hours
Working Temperature:  -20-+60 °C
Working Humidity:  Relative humidity 90% (condensation free)
Exterior dimension:  145*90*41mm
Net Weight:  250 g
