RGB to VGA,CGA to VGA,EGA to VGA,Industrial equipment Video-converter

GBS8218  Manual

Before use, paying attention to matters

1.In your installation before you read this brochure, please do not understand the statement before the operation began, there will be may not be able to use.

2.Before installing, please find out the way your video signal.
Signal means (category) usually the following categories
  -RGB(SOG Green synchronous) 3 BNC
-RGBS(CS Composite sync) 4 BNC
-RGBHV(Separation of synchronous) 5 BNC
-CGA/EGA(RGBS) Db9 to Db15 Output
Make sure that type of signal it will start the installation.

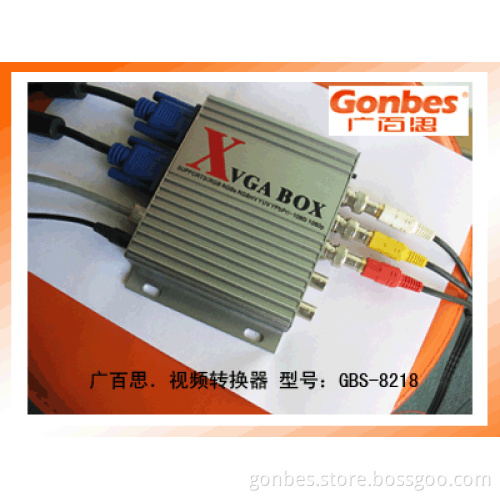

3.Interface structure of products.

Mark the corresponding interface features: (below)

DC12V: Power input, 12V DC voltage, current proposals for more than 1A.

RS232: debug interface serial controller through the interface can be adjusted on the circuit boards and programming.

VGA OUT: signal output interface, you can directly access the display.

VIDEO IN 2: DB15 connector, the signal input, channel 2.

VIDEO IN 1 5BNC: input signal, channel 1.

K1: Switch button, you can switch the signal input channel, and switch the input signal format.

4.Installation
1, interface introduced

Under the panel: a channel signal input interface, for a total of five BNC, plus a button to switch K1.
V: for the field synchronization signal.
H / CS: for the line sync signal, or composite sync signal.
R / Pr / Cr:: red signal, or the color of the PR, CR.
G / Y: green signal, or the Y color difference signal.
B / Pb / Cb: blue signal, or difference of Pb, Cb.
K1: Switch button.

Description of a channel interface, V H / CS R / Pr / Cr G / YB / Pb / Cb K1 (panel screen)
When the signal source for the RGB (SOG green sync) then R / Pr / Cr, G / Y, B / Pb / Cb  Three BNC, one-to-one.

When the signal source for the RGBS (CS composite sync) then H / CS, R / Pr / Cr, G / Y, B / Pb / Cb four BNC, one-to-one.

When the signal source to RGBHV (sync separation) then V, H / CS, R / Pr / Cr, G / Y, B / Pb / Cb five BNC, one-to-one.

When the signal source for YUV and YPbPr when the next R / Pr / Cr, G / Y, B / Pb / Cb, one-to-one.

On the panel: two-channel signal input interface such as VGA output.

VGA in: not really a VGA input interface, the same RGB, color difference, EGA and other signal interface, but for the convenience of customers connected, especially the 15-pin input customer.
Plans are defined as follows:


2, connection diagram


5, button Description:

K1 key function: K1 key functions, menu for two, the first level for the channel selection and signal source selection.
Such as: 1 channel RGB, 1-channel RGBS.
Resolution of two menu options for input, such as 480I, 1080P.
The use of techniques, when click K1, a menu will appear, OSD prompted for the flash, when the OSD when prompted for the flash can be to switch the input channel K1. If the input channels are required to use, please wait a few seconds after the flash, the system automatically to enter the secondary menu, and similarly, when the flash can be switched by K1, such as 480i, 480p, has the right to debug, please wait , the system will automatically exit the menu.

(Using the skills, if choosing the right input channel, such as 1-channel RGBS, can cut off the power, restart, the system will automatically identify the signal formats, such as the 720P.)
