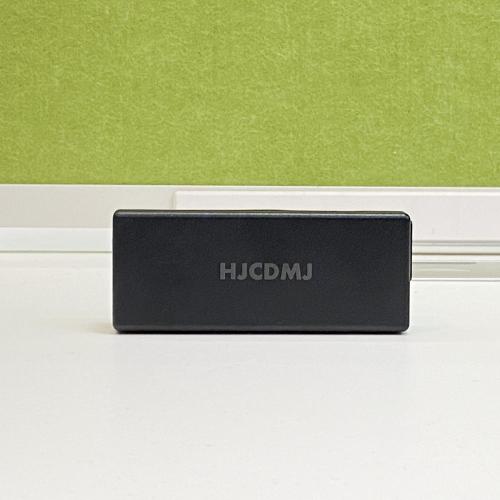

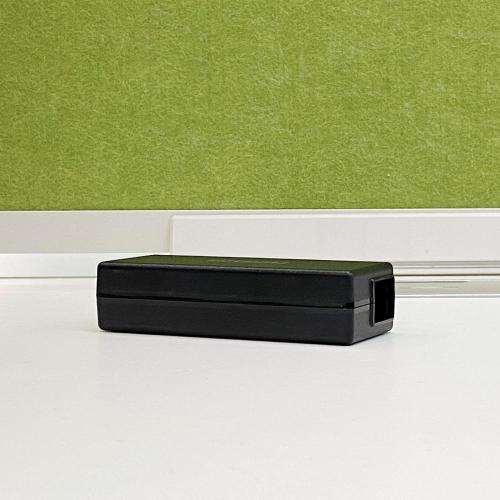

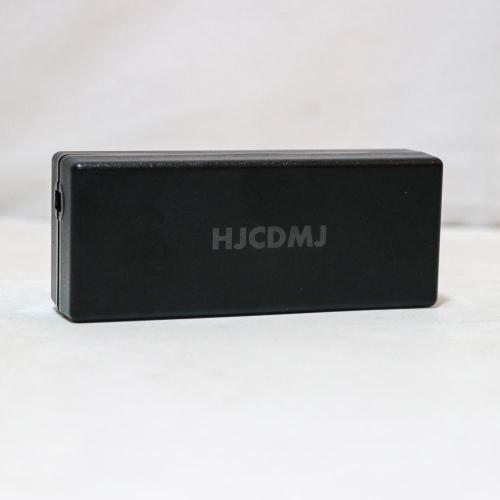

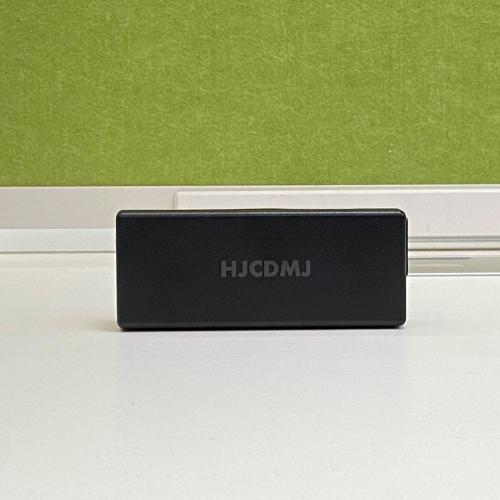

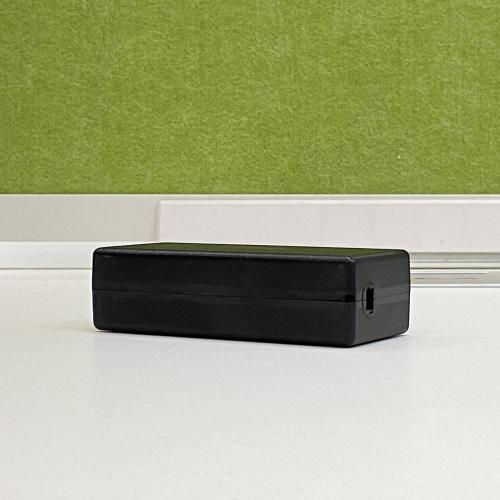

HJCDMJ Universal AC/DC Power Supply Adapter
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 50 Bag/Bags
- Min. Order:
- 50 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 20,000pcs/week |
| Supply Ability: | 20,000pcs/week |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | CE.FCC.RoHS |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
HJCDMJ Universal AC/DC Power Supply Adapter
Switching power supply is a widely used circuit controller, often used in a variety of industrial machinery automation control, communication tools, LED lighting equipment, a variety of ordinary home appliances and so on. It is the use of pulse controller to control the circuit switch, thus maintaining the output voltage of a power supply. It can be said that the switching power supply is almost widely used in almost all electronic equipment, is an indispensable power supply. All products in our factory has one year warranty. And we promise to replace our client's new products when they get any defective from our company.
For this item, followed are the Features:
1. Universal AC input/Full range
2. Protection: Short circult/Overload/Over Voltage
3. Cooling by free air convection
4. 100% full load burn-in test
5. No load power consumption < 0.5W
6. High efficiency, long life and high reliability
7. One year warranty
Details:
|
Model |
S-250-5V |
S-250-12V |
S-250-24V |
|
DC Output Voltage |
5V |
12V |
24V |
|
Iutput Voltage Error |
± 2% |
± 1% |
± 1% |
|
Rated Output Current |
50A |
20.8A |
10.4A |
|
Output Current Range |
0-50A |
0-20.8A |
0-10.4A |
|
Tripple and Noise |
150mVp-p |
250mVp-p |
350mVp-p |
|
Iniet Stability |
± 0.5% |
± 0.5% |
± 0.5% |
|
Tolerance Voltage |
± 1% |
± 0.5% |
± 0.5% |
|
DC Output Power |
250W |
250W |
250w |
|
Efficiency |
76% |
78% |
80% |
|
Adjustable Range for DC Voltage |
4.5-5.6V |
10-13.2V |
20-26.4V |
|
AC Input Voltage Range |
90~132VAC/180~264VAC selected by switch 47~63Hz; 240~370VDC |
||
|
Input Current |
6.5A/115V 4A/230V |
||
|
AC Inrush Current |
Cold-Start Current: 25A/115V, 50A/230V |
||
|
Leakage Current |
<3.5mA/240VAC |
||
|
Overload Protection |
105%~150% Type: Cut Output, Reset: Auto Recovery |
||
|
Over Voltage Protection |
Yes |
||
|
High Temperature Protection |
Yes |
||
|
Temperature Coefficient |
± 0.03% /°C (0~50°C) |
||
|
Start, Rise, Hold time |
200ms, 100ms, 20ms |
||
|
Vibration |
10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
||
|
Withstand Voltage |
Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
||
|
Isolation Resistance |
Input and Output Intermal: Input and Enclosule, Output and Enclosure: 500VDC/100M Ohms |
||
|
Working Temperature and Humidity |
`-10°C~+60°C (Refer to Output Dreating Cutive), 20%~90%RH |
||
|
Storage Temperature and Humidity |
`20°C~+85°C, 10%~95%RH |
||
|
Overall Dimension |
210*110*50 mm |
||
|
Weight |
633g |
||
|
EMC Standards |
Meet FCC Part 15J Conduction class B |
||
