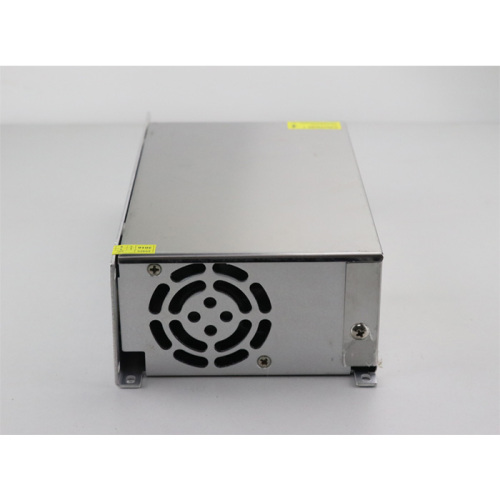

12V 40A Big Power LED Power Supply 480W
-
USD18.6≥100 Piece/Pieces
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen, Shekou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 10000pcs per week |
| Supply Ability: | 10000pcs per week |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 |
| HS Code: | 8504401400 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen,Shekou |
12V 40A Big Power LED Power Supply 480W
Strict production control, three times function test and at least three hours burn-in test. All products in our factory has one year warranty. And we promise to replace our client's new products when they get any defective from our company. In our company, you can get best subject solution anytime you need.
For this item, followed are the Features:
1. Universal AC input/Full range
2. Protection: Short circult/Overload/Over Voltage
3. Cooling by free air convection
4. 100% full load burn-in test with 3-5 hours
5. No load power consumption < 0.5W
6. High efficiency, long life and high reliability
7. One year warranty
Details:
|
Model |
|
S-480-12V |
S-480-24V |
|
DC Output Voltage |
|
12V |
24V |
|
Iutput Voltage Error |
|
± 1% |
± 1% |
|
Rated Output Current |
|
40A |
20A |
|
Output Current Range |
|
0-20A |
0-10A |
|
Tripple and Noise |
|
250mVp-p |
350mVp-p |
|
Iniet Stability |
|
± 0.5% |
± 0.5% |
|
Tolerance Voltage |
|
± 0.5% |
± 0.5% |
|
DC Output Power |
|
250W |
250w |
|
Efficiency |
|
78% |
80% |
|
Adjustable Range for DC Voltage |
|
10-13.2V |
20-26.4V |
|
AC Input Voltage Range |
90~132VAC/180~264VAC selected by switch 47~63Hz; 240~370VDC |
||
|
Input Current |
4A/115V 3/230V |
||
|
AC Inrush Current |
Cold-Start Current: 25A/115V, 50A/230V |
||
|
Leakage Current |
<3.5mA/240VAC |
||
|
Overload Protection |
105%~150% Type: Cut Output, Reset: Auto Recovery |
||
|
Over Voltage Protection |
Yes |
||
|
High Temperature Protection |
Yes |
||
|
Temperature Coefficient |
± 0.03% /°C (0~50°C) |
||
|
Start, Rise, Hold time |
200ms, 100ms, 20ms |
||
|
Vibration |
10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes |
||
|
Withstand Voltage |
Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC |
||
|
Isolation Resistance |
Input and Output Intermal: Input and Enclosule, Output and Enclosure: 500VDC/100M Ohms |
||
|
Working Temperature and Humidity |
`-10°C~+60°C (Refer to Output Dreating Cutive), 20%~90%RH |
||
|
Storage Temperature and Humidity |
`20°C~+85°C, 10%~95%RH |
||
|
Overall Dimension |
20*11*5cm |
||
|
Weight |
633g |
||
|
EMC Standards |
Meet FCC Part 15J Conduction class B |
||
Please Note:
1. The testing condition for the parameter above is: 230VAC input, rated load, 25°C 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inter is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. C3.4 must be knocked down.
Applications:
•Office , Artwork, Display items lighting;
•Household lighting;
•Commercial lighting, such as Flood light, Down light, Flexible strip light, Wall washer, etc;
•Hotel, Restaurant lighting;
•Other public facility lighting.
