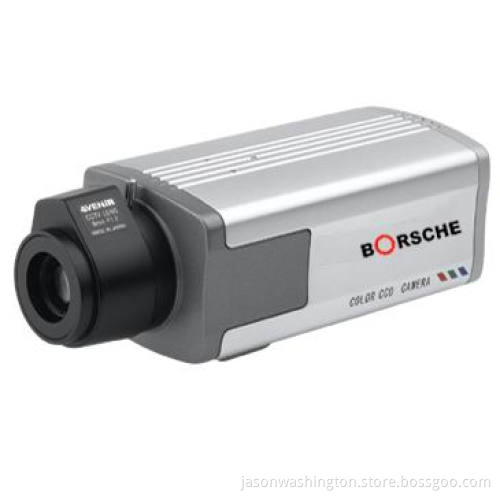

Box CCTV Camera

Item STL5001 STH5001 HQ5001 System PAL / NTSC Image Sensor 1/3" Sony CCD Picture Elements PAL: 500(H) x 582(V) NTSC: 510(H) x 92(V) PAL: 752(H) x 582(V); NTSC: 768(H) x 94(V) Video output 1.0Vp-p, 75II Composite, BNC x 1 Horizontal resolution 420TVL 480TVL 520TVL S/N Ratio >=48dB illumination 0.8 Lux 0.5 Lux 0.4 Lux Electronic Shutter 1/50 - 1/10,0000S White Balance Auto Gamma Ratio >=0.45 Infrared Spectrum Infrared Sensitive Lens Mount work with fixed lens,varifocal manual/auto iris lens Operating Temperature Outdoor: -10C to 50C Humidity 0 to 95% RH (non-condensing) Sync system 2:1 interlace internal Sync. Power supply 12V DC 150mA 12V DC 200mA 12V DC 200mA Weight Appro x 0.42kg Manufacturer BORSCHE Item SFL5001 PFL5001 PTL5001 System PAL / NTSC Image Sensor 1/4" Sony CCD 1/4" SHARP CCD 1/3" SHARP CCD Picture Elements PAL: 752(H) x 582(V); NTSC: 768(H) x 494(V) Video output 1.0Vp-p, 75II Composite, BNC x 1 Horizontal resolution 420TVL 420TVL 420TVL S/N Ratio >=48dB illumination 0.8 Lux 1.0 Lux 1.0 Lux Electronic Shutter 1/50 - 1/10,0000S White Balance Auto Gamma Ratio >=0.45 Infrared Spectrum Infrared Sensitive Lens Mount work with fixed lens,varifocal manual/auto iris lens Operating Temperature Outdoor: -10C to 50C Humidity 0 to 95% RH (non-condensing) Sync system 2:1 interlace internal Sync. Power supply 12V DC 150mA 12V DC 100mA 12V DC 100mA Weight Appro x 0.42kg Manufacturer BORSCHE *The spec may change without notice!
