Whosale Price 6V9.17A Desktop Power Adapter

Whosale Price 6V9.17A Desktop Power Adapter

Whosale Price 6V9.17A Desktop Power Adapter Description:

JYH series desktop power adapter are high quality and high reliability. Adopted qualified material and electronic componenets to manufacture power adapter can make customers enjoy good using experience. JYH desktop power supply adapter has a no load power consumption lower than 0.21W, fit for energy saving. Small size and light body, easy to carry. High efficiency means power adapter can work for a long time, SCP, OLP, OVP, OCP can guaranteen your safety, an ideal choice for your equipments that need to transform the voltage.

AC sockets, IEC320-C6/C8/C14, universal input 100-240Vac, DC jack are normally 5.5mm*2.5mm or 5.5mm*2.5mm, length is 10mm, DC cord length is 1.2m conventionlly, DC jack polarity is center positive and outside negative, befor you purchase, pls make sure the connector type is what you want.

Power adapter with DC 6V9.17A output, 55W, can be applied to advertising machines, monitors, power amplifiers, security, LCD TV, industrial control and other products.

6V9.17A dc Power adapter data:

Features:

Universal AC input/ full range

No load power consumption＜0.21W

ERP step 2 compliant

Protections: over voltage protection.over current protection.overload protection.short circuit protection

Electrical:

Dielectric withstand: 3,000VAC promary-secondary

Leakage current: 0.25mA@2Pin

Efficiency: Energy star level VI&ERP stage 2 certified

EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B

Harmonic current: Compliance to EN61000-3-2

MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332

Safety approvals:

UL/CUL/FCC/CCC/CB/GS/CE/SAA/C-Tick/ROHS/CEC.DOE VI

Specification:

Input voltage: 100-240Vac 50/60Hz 0.5A

Output voltage: 6V 9.17A

Output loading precision: ±%5

Operating temperature: 0℃-40℃

Storage temperature: -20℃-80℃

Size: L140*W60.5*H34.5mm
Compatible products:

Laptop,LED lighting,Audio and video products, home appliance,Industrial automation,communications, LED Strip WS2811 WS2812 WS2801 WS2812B,etc.

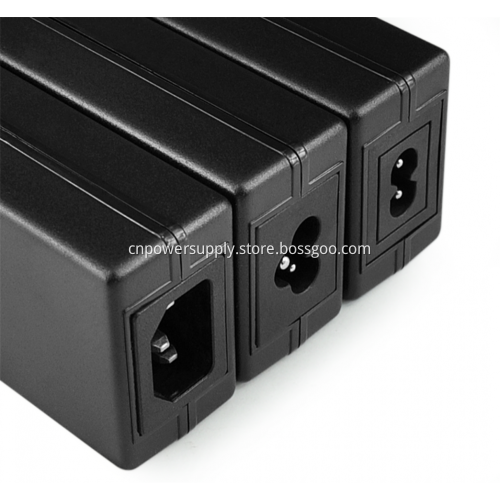

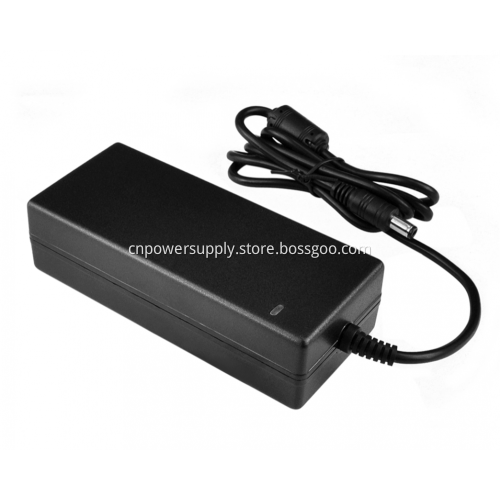

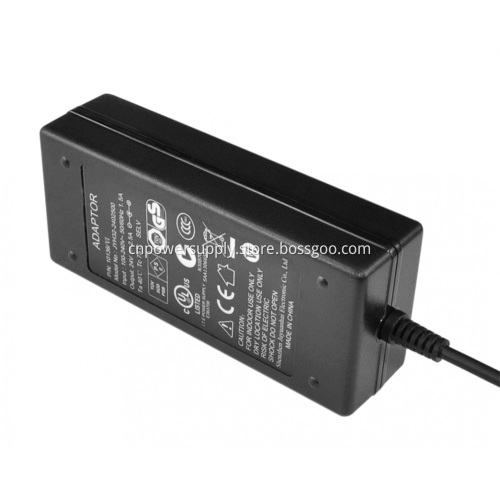

Products images:

Learn more about desktop power adapter.

FAQ

2, How we control the quality?

3, Can we accept samples customized?

4, What about the production capacity?

5, OEM and ODM are available?

6, Will the delivery time be long for a big order?

7, What is our warranty service?
