Qualified 19.5V2.05A 40W Replacement Power Adapter

Good Quality 19.5V2.05A 40W Replacement Power Adapter For Laptop

Good Quality 19.5V2.05A 40W Replacement Power Adapter For Laptop Description:

JYH power adapter adopt universal input 100Vac-240Vac, satisfy worldwide customers use, DC 19.5V2.05A, max 40W output, it can apply to laptop, as well as other products, such as electronic products, office products, industrial products, household products etc. We use qualified material and electronic components to manufacture power adapter for customers, to make sure our power adapter can acquire high efficiency and high reliability, in return,  you can acquire high higher economic benefits.

Four protections, short circuit protection/ overload protection/ overvoltage protection/ over-current protection, can make sure you are away from danger.

Generally, DC cord is 1.2m and output DC jack size is 5.5*2.5mm or 5.5*2.1 mm, but if you need other kinds size of DC jack ,we can also handle; about DC plug polarity, it`s positive center and outside negative.

19.5V2.05A dc Power adapter data:

Features:

Universal AC input/ full range

No load power consumption＜0.075W

ERP step 2 compliant

Protections: over voltage protection.over current protection.overload protection.short circuit protection

Electrical:

Dielectric withstand: 3,000VAC promary-secondary

Leakage current: 0.25mA@2Pin

Efficiency: Energy star level VI&ERP stage 2 certified

EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B

Harmonic current: Compliance to EN61000-3-2

MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332

Safety approvals:

UL/CUL/FCC/CCC/CB/GS/CE/SAA/C-Tick/ROHS/CEC.DOE VI

Specification:

Input voltage: 100-240Vac 50/60Hz 0.5A

Output voltage: 19.5V 2.05A

Output loading precision: ±5%

Operating temperature: 0℃-40℃

Storage temperature: -20℃-80℃

Size: L114*W50*H31mm
Compatible products:

Laptop,LED lighting,Audio and video products, home appliance,Industrial automation,communications, LED Strip WS2811 WS2812 WS2801 WS2812B,etc.

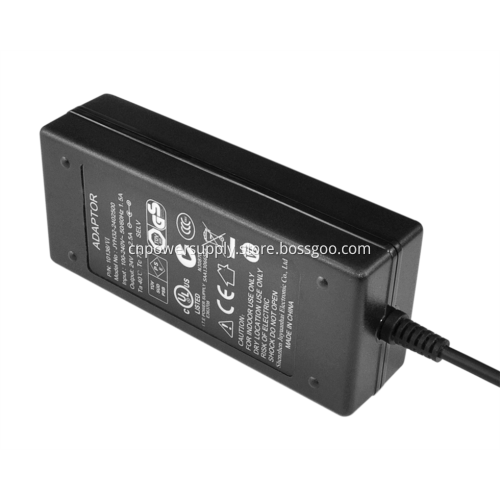

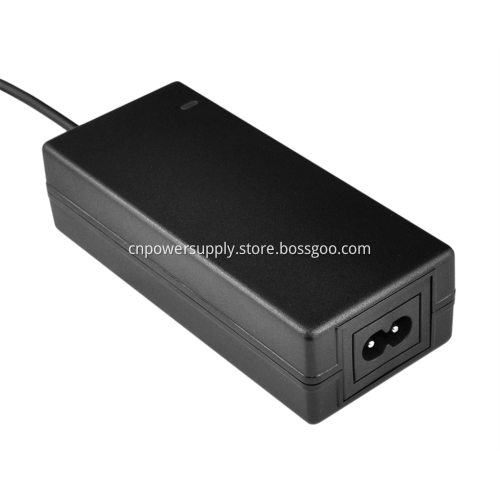

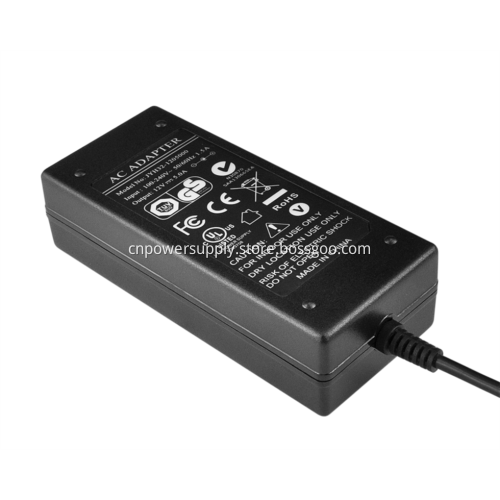

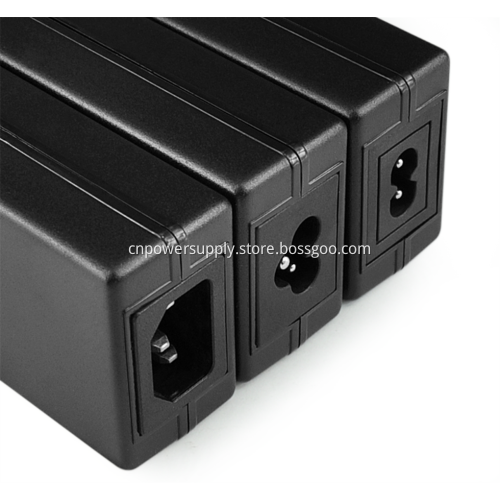

Products images:

FAQ

2, How we control the quality?

    Aging test for 8 hours, after then we put them into the market.

3, Can we accept samples customized?

    No problem for samples order, and welcome your testing before your big order.

4, What about the production capacity?

    1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.

5, OEM and ODM are available?

    Yes, we accept customized products.

6, Will the delivery time be long for a big order?

    No, we have two special parts in production line, one for samples orders, another for big orders.

7, What is our warranty service?

    For all products we sell have 2 years warranty.
