19.5V3.5A 70W High Quality Switching Power Supply Adapter

19.5V3.5A 70W High Quality Switching Power Supply Adapter

19.5V3.5A 70W High Quality Switching Power Supply Adapter Description:

JYH 19.5V series power adapter, has good quality and high cost performance, rated 3.5A output, max power output could be up to 70W, worldwide input 100Vac-240Vac can satisfy every country. 1.2M DC cable, DC plug size, satisfy 5.5*2.5mm, 5.5*2.1mm and others. Normally, we pack the adapter with PE bag and white box, in other hand, we can also provide customized service.

19.5V3.5A dc Power adapter data:

Features:

Universal AC input/ full range

No load power consumption＜0.21W

ERP step 2 compliant

Protections: over voltage protection.over current protection.overload protection.short circuit protection

Electrical:

Dielectric withstand: 3,000VAC promary-secondary

Leakage current: 0.25mA@2Pin

Efficiency: Energy star level VI&ERP stage 2 certified

EMI conduction & radiation: Compliance to EN55022 EN55024 FCC part 15B Class B

Harmonic current: Compliance to EN61000-3-2

MTBF; 30,000 calculated hours at 25℃, by Telcordia SR-332

Safety approvals:

UL/CUL/FCC/CCC/CB/GS/CE/SAA/C-Tick/ROHS/CEC.DOE VI

Specification:

Input voltage: 100-240Vac 50/60Hz 0.5A

Output voltage: 19.5V 3.5A

Output loading precision: ±5%

Operating temperature: 0℃-40℃

Storage temperature: -20℃-80℃

Size: L120*W52*H32mm
Compatible products:

Laptop,LED lighting,Audio and video products, home appliance,Industrial automation,communications, LED Strip WS2811 WS2812 WS2801 WS2812B,etc.

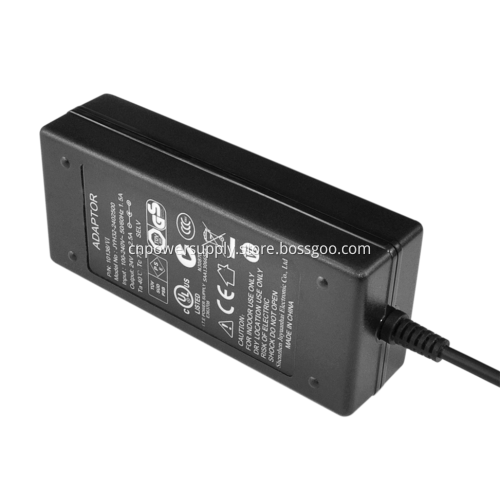

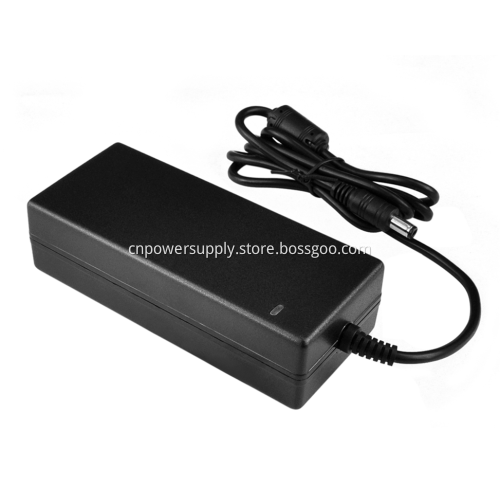

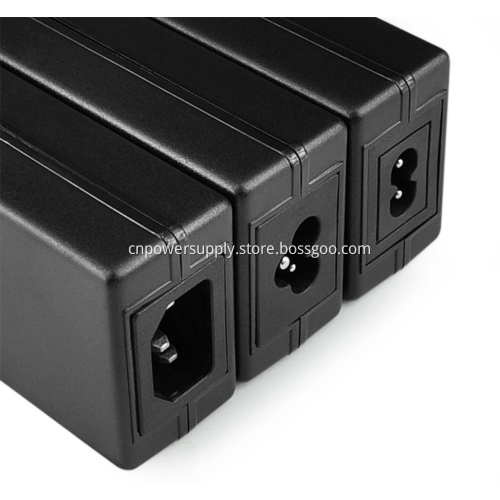

Products images:

Learn more about desktop power adapter.
